complexType tcip:SCHActualRunningTimeData

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	scheduled actuals
used by	element  tcip:SchActualRunningTimes/records/record
source	<xs:complexType name="SCHActualRunningTimeData">   <xs:sequence>     <xs:element name="scheduled" type="SCHRunningTimeEntry"/>     <xs:element name="actuals">       <xs:complexType>         <xs:sequence maxOccurs="20000">           <xs:element name="actual" type="SCHActualRunTime"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

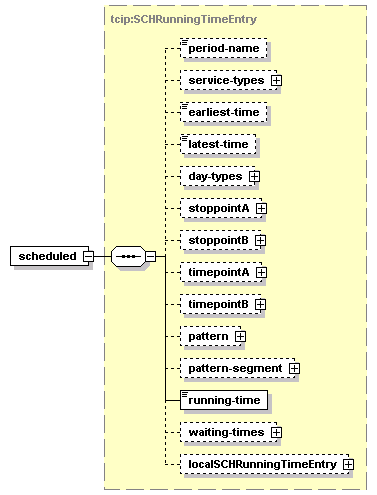

element tcip:SCHActualRunningTimeData/scheduled

diagram
type	tcip:SCHRunningTimeEntry
properties	isRef  0 content  complex
children	period-name service-types earliest-time latest-time day-types stoppointA stoppointB timepointA timepointB pattern pattern-segment running-time waiting-times localSCHRunningTimeEntry
source	<xs:element name="scheduled" type="SCHRunningTimeEntry"/>

element tcip:SCHActualRunningTimeData/actuals

diagram
properties	isRef  0 content  complex
children	actual
source	<xs:element name="actuals">   <xs:complexType>     <xs:sequence maxOccurs="20000">       <xs:element name="actual" type="SCHActualRunTime"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHActualRunningTimeData/actuals/actual

diagram
type	tcip:SCHActualRunTime
properties	isRef  0 content  complex
children	weather start-time trip actual-time
source	<xs:element name="actual" type="SCHActualRunTime"/>
