complexType tcip:ObReportHealth

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	report-time note status-reports
used by	element  tcip:obReportHealth
source	<xs:complexType name="ObReportHealth">   <xs:sequence>     <xs:element name="report-time" type="CPT-DateTime"/>     <xs:element name="note" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="status-reports">       <xs:complexType>         <xs:sequence maxOccurs="5">           <xs:element name="status-report" type="OBHealthStatusRecord"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:ObReportHealth/report-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="report-time" type="CPT-DateTime"/>

element tcip:ObReportHealth/note

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="note" type="CPT-Footnote" minOccurs="0"/>

element tcip:ObReportHealth/status-reports

diagram
properties	isRef  0 content  complex
children	status-report
source	<xs:element name="status-reports">   <xs:complexType>     <xs:sequence maxOccurs="5">       <xs:element name="status-report" type="OBHealthStatusRecord"/>     </xs:sequence>   </xs:complexType> </xs:element>

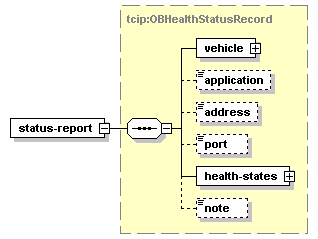

element tcip:ObReportHealth/status-reports/status-report

diagram
type	tcip:OBHealthStatusRecord
properties	isRef  0 content  complex
children	vehicle application address port health-states note
source	<xs:element name="status-report" type="OBHealthStatusRecord"/>
