complexType tcip:OBHealthStatusRecord

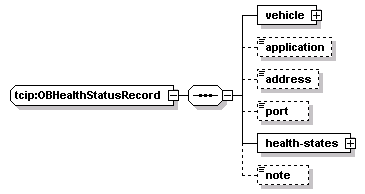

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	vehicle application address port health-states note
used by	elements  tcip:CcFleetHealthAlarm/status-reports/status-report tcip:CcPTVehicleAlarm/status-reports/status-report tcip:ObReportHealth/status-reports/status-report
source	<xs:complexType name="OBHealthStatusRecord">   <xs:sequence>     <xs:element name="vehicle" type="CPTVehicleIden"/>     <xs:element name="application" type="CPT-ApplicationID" minOccurs="0"/>     <xs:element name="address" type="CPT-IP-Address" minOccurs="0"/>     <xs:element name="port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>     <xs:element name="health-states">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="health-state" type="CPT-HealthStatus"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="note" type="CPT-Footnote" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:OBHealthStatusRecord/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:OBHealthStatusRecord/application

diagram
type	tcip:CPT-ApplicationID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="application" type="CPT-ApplicationID" minOccurs="0"/>

element tcip:OBHealthStatusRecord/address

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="address" type="CPT-IP-Address" minOccurs="0"/>

element tcip:OBHealthStatusRecord/port

diagram
type	tcip:CPT-UDP-TCP-PortNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>

element tcip:OBHealthStatusRecord/health-states

diagram
properties	isRef  0 content  complex
children	health-state
source	<xs:element name="health-states">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="health-state" type="CPT-HealthStatus"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:OBHealthStatusRecord/health-states/health-state

diagram
type	tcip:CPT-HealthStatus
properties	isRef  0 content  simple
source	<xs:element name="health-state" type="CPT-HealthStatus"/>

element tcip:OBHealthStatusRecord/note

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="note" type="CPT-Footnote" minOccurs="0"/>
