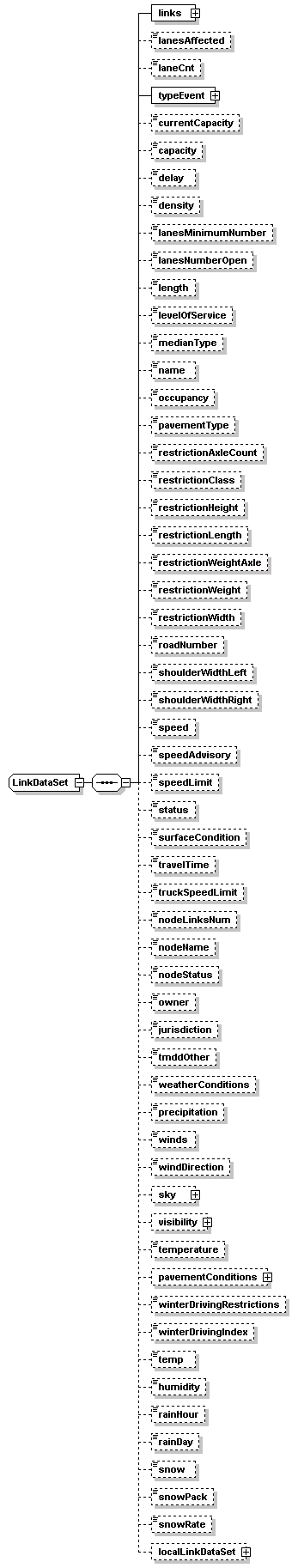

complexType LinkDataSet

diagram
namespace	http://www.IM-Draft-03-00-44a
children	links lanesAffected laneCnt typeEvent currentCapacity capacity delay density lanesMinimumNumber lanesNumberOpen length levelOfService medianType name occupancy pavementType restrictionAxleCount restrictionClass restrictionHeight restrictionLength restrictionWeightAxle restrictionWeight restrictionWidth roadNumber shoulderWidthLeft shoulderWidthRight speed speedAdvisory speedLimit status surfaceCondition travelTime truckSpeedLimit nodeLinksNum nodeName nodeStatus owner jurisdiction tmddOther weatherConditions precipitation winds windDirection sky visibility temperature pavementConditions winterDrivingRestrictions winterDrivingIndex temp humidity rainHour rainDay snow snowPack snowRate localLinkDataSet
used by	elements  NetworkConditions/rawTMDD WorkZoneData/restrictions
source	<xs:complexType name="LinkDataSet">   <xs:sequence>     <xs:element name="links">       <xs:complexType>         <xs:sequence maxOccurs="64">           <xs:element name="link" type="tmdd:Link-identifier"/>           <!-- links to which the below data pertains note that these are not in a format to connect them with the below conditions -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="lanesAffected" type="tmdd:Event-lanes-total-affected" minOccurs="0"/>     <!-- a count of the affected lanes -->     <xs:element name="laneCnt" type="tmdd:Link-lanes-number-open" minOccurs="0"/>     <!-- the number of nominal lanes for the link,          zero indicates the count is unknown -->     <xs:element name="typeEvent" type="itis:ITISEventType"/>     <!-- a catagory and an item from that catagory          Uses the same basic types as ITIS/ATIS/TMDD          Missing:   laneClosedList             TMDD.LaneClosedList  OPTIONAL ,          Missing:   laneConfigurationList      TMDD.LaneConfigurationList  OPTIONAL , -->     <xs:element name="currentCapacity" type="tmdd:Link-capacity-existing" minOccurs="0"/>     <xs:element name="capacity" type="tmdd:Link-capacity" minOccurs="0"/>     <xs:element name="delay" type="tmdd:Link-delay" minOccurs="0"/>     <xs:element name="density" type="tmdd:Link-density" minOccurs="0"/>     <xs:element name="lanesMinimumNumber" type="tmdd:Link-lane-count" minOccurs="0"/>     <xs:element name="lanesNumberOpen" type="tmdd:Link-lanes-number-open" minOccurs="0"/>     <xs:element name="length" type="tmdd:Link-length" minOccurs="0"/>     <xs:element name="levelOfService" type="tmdd:Link-level-of-service" minOccurs="0"/>     <xs:element name="medianType" type="tmdd:Link-median-type" minOccurs="0"/>     <xs:element name="name" type="tmdd:Link-name" minOccurs="0"/>     <xs:element name="occupancy" type="tmdd:Link-occupancy" minOccurs="0"/>     <xs:element name="pavementType" type="tmdd:Link-pavement-type" minOccurs="0"/>     <xs:element name="restrictionAxleCount" type="tmdd:Link-restriction-axle-count" minOccurs="0"/>     <xs:element name="restrictionClass" type="tmdd:Link-restriction-class" minOccurs="0"/>     <xs:element name="restrictionHeight" type="tmdd:Link-restriction-height" minOccurs="0"/>     <xs:element name="restrictionLength" type="tmdd:Link-restriction-length" minOccurs="0"/>     <xs:element name="restrictionWeightAxle" type="tmdd:Link-restriction-weight-axle" minOccurs="0"/>     <xs:element name="restrictionWeight" type="tmdd:Link-restriction-weight-vehicle" minOccurs="0"/>     <xs:element name="restrictionWidth" type="tmdd:Link-restriction-width" minOccurs="0"/>     <xs:element name="roadNumber" type="tmdd:Link-route-designator" minOccurs="0"/>     <!-- roadNumber                 TMDD.Link-road-number  OPTIONAL , -->     <xs:element name="shoulderWidthLeft" type="tmdd:Link-shoulder-width-left" minOccurs="0"/>     <xs:element name="shoulderWidthRight" type="tmdd:Link-shoulder-width-right" minOccurs="0"/>     <xs:element name="speed" type="tmdd:Link-speed-average" minOccurs="0"/>     <xs:element name="speedAdvisory" type="tmdd:Link-speed-limit-advisory" minOccurs="0"/>     <xs:element name="speedLimit" type="tmdd:Link-speed-limit" minOccurs="0"/>     <xs:element name="status" type="tmdd:Link-status" minOccurs="0"/>     <xs:element name="surfaceCondition" type="tmdd:Link-surface-condition" minOccurs="0"/>     <xs:element name="travelTime" type="tmdd:Link-travel-time" minOccurs="0"/>     <xs:element name="truckSpeedLimit" type="tmdd:Link-speed-limit-truck" minOccurs="0"/>     <xs:element name="nodeLinksNum" type="tmdd:Node-links-number" minOccurs="0"/>     <xs:element name="nodeName" type="tmdd:Node-name" minOccurs="0"/>     <xs:element name="nodeStatus" type="tmdd:Node-status" minOccurs="0"/>     <xs:element name="owner" type="tmdd:Link-ownership" minOccurs="0"/>     <xs:element name="jurisdiction" type="tmdd:Link-jurisdiction" minOccurs="0"/>     <xs:element name="tmddOther" type="tmdd:Link-other" minOccurs="0"/>     <!-- The following items come from the ITIS properties and definitions -->     <xs:element name="weatherConditions" type="itis:WeatherConditions" minOccurs="0"/>     <xs:element name="precipitation" type="itis:Precipitation" minOccurs="0"/>     <xs:element name="winds" type="itis:Winds" minOccurs="0"/>     <xs:element name="windDirection" type="atis:Direction" minOccurs="0"/>     <xs:element name="sky" type="atis:Weather-SkyConditions" minOccurs="0"/>     <xs:element name="visibility" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="2">           <xs:element name="visibility-item" type="itis:VisibilityAndAirQuality"/>           <!-- and includes air quality -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="temperature" type="itis:Temperature" minOccurs="0"/>     <xs:element name="pavementConditions" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="3">           <xs:element name="pavementCondition" type="itis:PavementConditions"/>           <!-- includes data on roadway objects and ice and snow types -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="winterDrivingRestrictions" type="itis:WinterDrivingRestrictions" minOccurs="0"/>     <xs:element name="winterDrivingIndex" type="itis:WinterDrivingIndex" minOccurs="0"/>     <!-- The following items come from NTCIP ESS work -->     <xs:element name="temp" type="ntcip:EssAirTemperature" minOccurs="0"/>     <xs:element name="humidity" type="ntcip:EssRelativeHumidity" minOccurs="0"/>     <xs:element name="rainHour" type="ntcip:EssPrecipitationOneHour" minOccurs="0"/>     <xs:element name="rainDay" type="ntcip:EssPrecipitation24Hours" minOccurs="0"/>     <xs:element name="snow" type="ntcip:EssRoadwaySnowDepth" minOccurs="0"/>     <xs:element name="snowPack" type="ntcip:EssRoadwaySnowPackDepth" minOccurs="0"/>     <xs:element name="snowRate" type="ntcip:EssSnowfallAccumRate" minOccurs="0"/>     <xs:element name="localLinkDataSet" type="local:LinkDataSet" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element LinkDataSet/links

diagram
properties	isRef  0 content  complex
children	link
source	<xs:element name="links">   <xs:complexType>     <xs:sequence maxOccurs="64">       <xs:element name="link" type="tmdd:Link-identifier"/>       <!-- links to which the below data pertains note that these are not in a format to connect them with the below conditions -->     </xs:sequence>   </xs:complexType> </xs:element>

element LinkDataSet/links/link

diagram
type	tmdd:Link-identifier
properties	isRef  0 content  simple
source	<xs:element name="link" type="tmdd:Link-identifier"/>

element LinkDataSet/lanesAffected

diagram
type	tmdd:Event-lanes-total-affected
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="lanesAffected" type="tmdd:Event-lanes-total-affected" minOccurs="0"/>

element LinkDataSet/laneCnt

diagram
type	tmdd:Link-lanes-number-open
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  50
source	<xs:element name="laneCnt" type="tmdd:Link-lanes-number-open" minOccurs="0"/>

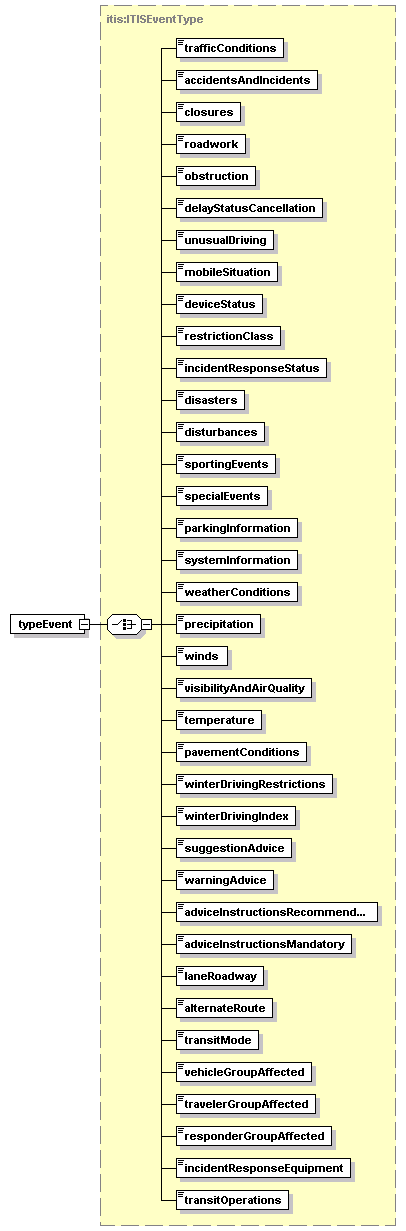

element LinkDataSet/typeEvent

diagram
type	itis:ITISEventType
properties	isRef  0 content  complex
children	trafficConditions accidentsAndIncidents closures roadwork obstruction delayStatusCancellation unusualDriving mobileSituation deviceStatus restrictionClass incidentResponseStatus disasters disturbances sportingEvents specialEvents parkingInformation systemInformation weatherConditions precipitation winds visibilityAndAirQuality temperature pavementConditions winterDrivingRestrictions winterDrivingIndex suggestionAdvice warningAdvice adviceInstructionsRecommendations adviceInstructionsMandatory laneRoadway alternateRoute transitMode vehicleGroupAffected travelerGroupAffected responderGroupAffected incidentResponseEquipment transitOperations
source	<xs:element name="typeEvent" type="itis:ITISEventType"/>

element LinkDataSet/currentCapacity

diagram
type	tmdd:Link-capacity-existing
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="currentCapacity" type="tmdd:Link-capacity-existing" minOccurs="0"/>

element LinkDataSet/capacity

diagram
type	tmdd:Link-capacity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  300000
source	<xs:element name="capacity" type="tmdd:Link-capacity" minOccurs="0"/>

element LinkDataSet/delay

diagram
type	tmdd:Link-delay
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  605000
source	<xs:element name="delay" type="tmdd:Link-delay" minOccurs="0"/>

element LinkDataSet/density

diagram
type	tmdd:Link-density
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  2000
source	<xs:element name="density" type="tmdd:Link-density" minOccurs="0"/>

element LinkDataSet/lanesMinimumNumber

diagram
type	tmdd:Link-lane-count
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  50
source	<xs:element name="lanesMinimumNumber" type="tmdd:Link-lane-count" minOccurs="0"/>

element LinkDataSet/lanesNumberOpen

diagram
type	tmdd:Link-lanes-number-open
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  50
source	<xs:element name="lanesNumberOpen" type="tmdd:Link-lanes-number-open" minOccurs="0"/>

element LinkDataSet/length

diagram
type	tmdd:Link-length
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  160000
source	<xs:element name="length" type="tmdd:Link-length" minOccurs="0"/>

element LinkDataSet/levelOfService

diagram
type	tmdd:Link-level-of-service
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="levelOfService" type="tmdd:Link-level-of-service" minOccurs="0"/>

element LinkDataSet/medianType

diagram
type	tmdd:Link-median-type
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="medianType" type="tmdd:Link-median-type" minOccurs="0"/>

element LinkDataSet/name

diagram
type	tmdd:Link-name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="name" type="tmdd:Link-name" minOccurs="0"/>

element LinkDataSet/occupancy

diagram
type	tmdd:Link-occupancy
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  100
source	<xs:element name="occupancy" type="tmdd:Link-occupancy" minOccurs="0"/>

element LinkDataSet/pavementType

diagram
type	tmdd:Link-pavement-type
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="pavementType" type="tmdd:Link-pavement-type" minOccurs="0"/>

element LinkDataSet/restrictionAxleCount

diagram
type	tmdd:Link-restriction-axle-count
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  20
source	<xs:element name="restrictionAxleCount" type="tmdd:Link-restriction-axle-count" minOccurs="0"/>

element LinkDataSet/restrictionClass

diagram
type	tmdd:Link-restriction-class
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="restrictionClass" type="tmdd:Link-restriction-class" minOccurs="0"/>

element LinkDataSet/restrictionHeight

diagram
type	tmdd:Link-restriction-height
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  2000
source	<xs:element name="restrictionHeight" type="tmdd:Link-restriction-height" minOccurs="0"/>

element LinkDataSet/restrictionLength

diagram
type	tmdd:Link-restriction-length
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  6000
source	<xs:element name="restrictionLength" type="tmdd:Link-restriction-length" minOccurs="0"/>

element LinkDataSet/restrictionWeightAxle

diagram
type	tmdd:Link-restriction-weight-axle
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  20000
source	<xs:element name="restrictionWeightAxle" type="tmdd:Link-restriction-weight-axle" minOccurs="0"/>

element LinkDataSet/restrictionWeight

diagram
type	tmdd:Link-restriction-weight-vehicle
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  80000
source	<xs:element name="restrictionWeight" type="tmdd:Link-restriction-weight-vehicle" minOccurs="0"/>

element LinkDataSet/restrictionWidth

diagram
type	tmdd:Link-restriction-width
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  2000
source	<xs:element name="restrictionWidth" type="tmdd:Link-restriction-width" minOccurs="0"/>

element LinkDataSet/roadNumber

diagram
type	tmdd:Link-route-designator
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="roadNumber" type="tmdd:Link-route-designator" minOccurs="0"/>

element LinkDataSet/shoulderWidthLeft

diagram
type	tmdd:Link-shoulder-width-left
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  999
source	<xs:element name="shoulderWidthLeft" type="tmdd:Link-shoulder-width-left" minOccurs="0"/>

element LinkDataSet/shoulderWidthRight

diagram
type	tmdd:Link-shoulder-width-right
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  999
source	<xs:element name="shoulderWidthRight" type="tmdd:Link-shoulder-width-right" minOccurs="0"/>

element LinkDataSet/speed

diagram
type	tmdd:Link-speed-average
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="speed" type="tmdd:Link-speed-average" minOccurs="0"/>

element LinkDataSet/speedAdvisory

diagram
type	tmdd:Link-speed-limit-advisory
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="speedAdvisory" type="tmdd:Link-speed-limit-advisory" minOccurs="0"/>

element LinkDataSet/speedLimit

diagram
type	tmdd:Link-speed-limit
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="speedLimit" type="tmdd:Link-speed-limit" minOccurs="0"/>

element LinkDataSet/status

diagram
type	tmdd:Link-status
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="status" type="tmdd:Link-status" minOccurs="0"/>

element LinkDataSet/surfaceCondition

diagram
type	tmdd:Link-surface-condition
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="surfaceCondition" type="tmdd:Link-surface-condition" minOccurs="0"/>

element LinkDataSet/travelTime

diagram
type	tmdd:Link-travel-time
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="travelTime" type="tmdd:Link-travel-time" minOccurs="0"/>

element LinkDataSet/truckSpeedLimit

diagram
type	tmdd:Link-speed-limit-truck
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="truckSpeedLimit" type="tmdd:Link-speed-limit-truck" minOccurs="0"/>

element LinkDataSet/nodeLinksNum

diagram
type	tmdd:Node-links-number
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  999
source	<xs:element name="nodeLinksNum" type="tmdd:Node-links-number" minOccurs="0"/>

element LinkDataSet/nodeName

diagram
type	tmdd:Node-name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="nodeName" type="tmdd:Node-name" minOccurs="0"/>

element LinkDataSet/nodeStatus

diagram
type	tmdd:Node-status
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="nodeStatus" type="tmdd:Node-status" minOccurs="0"/>

element LinkDataSet/owner

diagram
type	tmdd:Link-ownership
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  256
source	<xs:element name="owner" type="tmdd:Link-ownership" minOccurs="0"/>

element LinkDataSet/jurisdiction

diagram
type	tmdd:Link-jurisdiction
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="jurisdiction" type="tmdd:Link-jurisdiction" minOccurs="0"/>

element LinkDataSet/tmddOther

diagram
type	tmdd:Link-other
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  256
source	<xs:element name="tmddOther" type="tmdd:Link-other" minOccurs="0"/>

element LinkDataSet/weatherConditions

diagram
type	itis:WeatherConditions
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="weatherConditions" type="itis:WeatherConditions" minOccurs="0"/>

element LinkDataSet/precipitation

diagram
type	itis:Precipitation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="precipitation" type="itis:Precipitation" minOccurs="0"/>

element LinkDataSet/winds

diagram
type	itis:Winds
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="winds" type="itis:Winds" minOccurs="0"/>

element LinkDataSet/windDirection

diagram
type	atis:Direction
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="windDirection" type="atis:Direction" minOccurs="0"/>

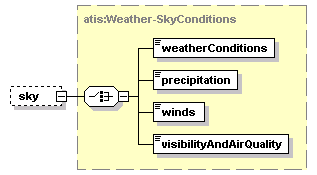

element LinkDataSet/sky

diagram
type	atis:Weather-SkyConditions
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	weatherConditions precipitation winds visibilityAndAirQuality
source	<xs:element name="sky" type="atis:Weather-SkyConditions" minOccurs="0"/>

element LinkDataSet/visibility

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	visibility-item
source	<xs:element name="visibility" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="2">       <xs:element name="visibility-item" type="itis:VisibilityAndAirQuality"/>       <!-- and includes air quality -->     </xs:sequence>   </xs:complexType> </xs:element>

element LinkDataSet/visibility/visibility-item

diagram
type	itis:VisibilityAndAirQuality
properties	isRef  0 content  simple
source	<xs:element name="visibility-item" type="itis:VisibilityAndAirQuality"/>

element LinkDataSet/temperature

diagram
type	itis:Temperature
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="temperature" type="itis:Temperature" minOccurs="0"/>

element LinkDataSet/pavementConditions

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	pavementCondition
source	<xs:element name="pavementConditions" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="3">       <xs:element name="pavementCondition" type="itis:PavementConditions"/>       <!-- includes data on roadway objects and ice and snow types -->     </xs:sequence>   </xs:complexType> </xs:element>

element LinkDataSet/pavementConditions/pavementCondition

diagram
type	itis:PavementConditions
properties	isRef  0 content  simple
source	<xs:element name="pavementCondition" type="itis:PavementConditions"/>

element LinkDataSet/winterDrivingRestrictions

diagram
type	itis:WinterDrivingRestrictions
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="winterDrivingRestrictions" type="itis:WinterDrivingRestrictions" minOccurs="0"/>

element LinkDataSet/winterDrivingIndex

diagram
type	itis:WinterDrivingIndex
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="winterDrivingIndex" type="itis:WinterDrivingIndex" minOccurs="0"/>

element LinkDataSet/temp

diagram
type	ntcip:EssAirTemperature
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -1000 maxInclusive  1001
source	<xs:element name="temp" type="ntcip:EssAirTemperature" minOccurs="0"/>

element LinkDataSet/humidity

diagram
type	ntcip:EssRelativeHumidity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  101
source	<xs:element name="humidity" type="ntcip:EssRelativeHumidity" minOccurs="0"/>

element LinkDataSet/rainHour

diagram
type	ntcip:EssPrecipitationOneHour
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="rainHour" type="ntcip:EssPrecipitationOneHour" minOccurs="0"/>

element LinkDataSet/rainDay

diagram
type	ntcip:EssPrecipitation24Hours
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="rainDay" type="ntcip:EssPrecipitation24Hours" minOccurs="0"/>

element LinkDataSet/snow

diagram
type	ntcip:EssRoadwaySnowDepth
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  3001
source	<xs:element name="snow" type="ntcip:EssRoadwaySnowDepth" minOccurs="0"/>

element LinkDataSet/snowPack

diagram
type	ntcip:EssRoadwaySnowPackDepth
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  3001
source	<xs:element name="snowPack" type="ntcip:EssRoadwaySnowPackDepth" minOccurs="0"/>

element LinkDataSet/snowRate

diagram
type	ntcip:EssSnowfallAccumRate
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="snowRate" type="ntcip:EssSnowfallAccumRate" minOccurs="0"/>

element LinkDataSet/localLinkDataSet

diagram
type	local:LinkDataSet
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localLinkDataSet" type="local:LinkDataSet" minOccurs="0"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
