complexType EvacuationData
diagram
namespace http://www.IM-Draft-03-00-44a
children evacuationData-item
used by
element Evacuation/evacuationData
source <xs:complexType name="EvacuationData">
  <xs:sequence maxOccurs="32">
    <xs:element name="evacuationData-item">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="evacuationLocation" type="lrms:LocationReference"/>
          <!-- Based on [SAE.LRMS.Geo.Polygon]
                  area that may need to be evacuated -->
          <xs:element name="qual1" type="Reliability"/>
          <!-- reliability estimate of above area -->
          <xs:element name="cause" type="Evacuation-Cause-National" minOccurs="0"/>
          <!-- was: Evacuation-Cause  OPTIONAL ,
                  coded list of cause of concern -->
          <xs:element name="causeText" minOccurs="0">
            <xs:simpleType>
              <xs:restriction base="FreeText">
                <xs:minLength value="1"/>
                <xs:maxLength value="255"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:element>
          <!-- additional comments regarding cause / type
                  of evacuation -->
          <xs:element name="qual2" type="Reliability" minOccurs="0"/>
          <!-- reliability estimate of above cause -->
          <xs:element name="likelihood" minOccurs="0">
            <xs:simpleType>
              <xs:restriction base="FreeText">
                <xs:minLength value="1"/>
                <xs:maxLength value="255"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:element>
          <!-- text expressing
                  likelihood of need to evacuate -->
          <xs:element name="qual3" type="Reliability" minOccurs="0"/>
          <!-- reliability estimate of above likelihood -->
          <xs:element name="localEvacuationData" type="local:EvacuationData" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

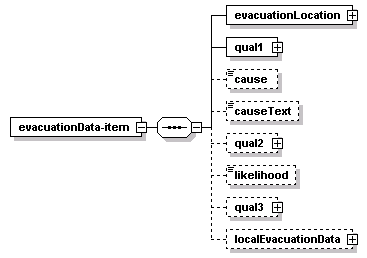

element EvacuationData/evacuationData-item
diagram
properties
isRef 0
content complex
children evacuationLocation qual1 cause causeText qual2 likelihood qual3 localEvacuationData
source <xs:element name="evacuationData-item">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="evacuationLocation" type="lrms:LocationReference"/>
      <!-- Based on [SAE.LRMS.Geo.Polygon]
                  area that may need to be evacuated -->
      <xs:element name="qual1" type="Reliability"/>
      <!-- reliability estimate of above area -->
      <xs:element name="cause" type="Evacuation-Cause-National" minOccurs="0"/>
      <!-- was: Evacuation-Cause  OPTIONAL ,
                  coded list of cause of concern -->
      <xs:element name="causeText" minOccurs="0">
        <xs:simpleType>
          <xs:restriction base="FreeText">
            <xs:minLength value="1"/>
            <xs:maxLength value="255"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <!-- additional comments regarding cause / type
                  of evacuation -->
      <xs:element name="qual2" type="Reliability" minOccurs="0"/>
      <!-- reliability estimate of above cause -->
      <xs:element name="likelihood" minOccurs="0">
        <xs:simpleType>
          <xs:restriction base="FreeText">
            <xs:minLength value="1"/>
            <xs:maxLength value="255"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <!-- text expressing
                  likelihood of need to evacuate -->
      <xs:element name="qual3" type="Reliability" minOccurs="0"/>
      <!-- reliability estimate of above likelihood -->
      <xs:element name="localEvacuationData" type="local:EvacuationData" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

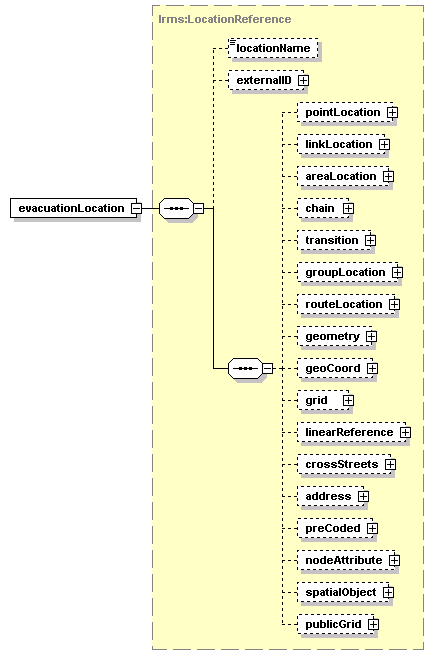

element EvacuationData/evacuationData-item/evacuationLocation
diagram
type lrms:LocationReference
properties
isRef 0
content complex
children locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes
Name  Type  Use  Default  Fixed  annotation
locationIDlrms:String-index64
source <xs:element name="evacuationLocation" type="lrms:LocationReference"/>

element EvacuationData/evacuationData-item/qual1
diagram
type Reliability
properties
isRef 0
content complex
children textual role roleText percent geometry
source <xs:element name="qual1" type="Reliability"/>

element EvacuationData/evacuationData-item/cause
diagram
type Evacuation-Cause-National
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="cause" type="Evacuation-Cause-National" minOccurs="0"/>

element EvacuationData/evacuationData-item/causeText
diagram
type restriction of FreeText
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
source <xs:element name="causeText" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="FreeText">
      <xs:minLength value="1"/>
      <xs:maxLength value="255"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EvacuationData/evacuationData-item/qual2
diagram
type Reliability
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children textual role roleText percent geometry
source <xs:element name="qual2" type="Reliability" minOccurs="0"/>

element EvacuationData/evacuationData-item/likelihood
diagram
type restriction of FreeText
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
source <xs:element name="likelihood" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="FreeText">
      <xs:minLength value="1"/>
      <xs:maxLength value="255"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EvacuationData/evacuationData-item/qual3
diagram
type Reliability
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children textual role roleText percent geometry
source <xs:element name="qual3" type="Reliability" minOccurs="0"/>

element EvacuationData/evacuationData-item/localEvacuationData
diagram
type local:EvacuationData
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localEvacuationData" type="local:EvacuationData" minOccurs="0"/>
