complexType DSRC-MsgSend

diagram
namespace	http://www.IM-Draft-03-00-44a
children	broadcastCycle beaconsRequest
used by	elements  dSRC-MsgSend IMWrapper/dsrcMessage
source	<xs:complexType name="DSRC-MsgSend">   <xs:sequence>     <xs:element name="broadcastCycle" type="BcastCycle"/>     <!-- details about when the msg is to be repeated -->     <xs:element name="beaconsRequest" type="atis:RoadSideAlert" minOccurs="0"/>     <!-- as per the ATIS message for sending DSRC alerts -->   </xs:sequence> </xs:complexType>

element DSRC-MsgSend/broadcastCycle

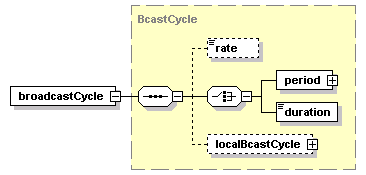

diagram
type	BcastCycle
properties	isRef  0 content  complex
children	rate period duration localBcastCycle
source	<xs:element name="broadcastCycle" type="BcastCycle"/>

element DSRC-MsgSend/beaconsRequest

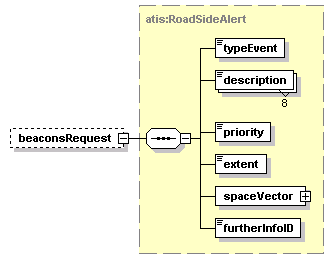

diagram
type	atis:RoadSideAlert
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	typeEvent description priority extent spaceVector furtherInfoID
source	<xs:element name="beaconsRequest" type="atis:RoadSideAlert" minOccurs="0"/>
