complexType BcastCycle

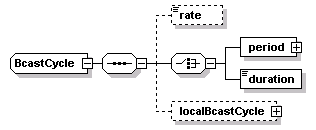

diagram
namespace http://www.IM-Draft-03-00-44a
children rate period duration localBcastCycle
used by
elements DSRC-MsgSend/broadcastCycle DSRC-UsePlan/broadcastCycle
source <xs:complexType name="BcastCycle">
  <xs:sequence>
    <xs:element name="rate" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:unsignedShort">
          <xs:minInclusive value="1"/>
          <xs:maxInclusive value="18000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <!-- the number of 1/10 second intervals between
         each msg transmission -->
    <xs:choice>
      <xs:element name="period">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="start" type="atis:DateTimePair"/>
            <xs:element name="end" type="atis:DateTimePair"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="duration">
        <xs:simpleType>
          <xs:restriction base="xs:unsignedInt">
            <xs:minInclusive value="1"/>
            <xs:maxInclusive value="86400"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <!-- the number of seconds to run this
            message,  allows up to a 24 hours -->
    </xs:choice>
    <xs:element name="localBcastCycle" type="local:BcastCycle" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element BcastCycle/rate
diagram
type restriction of xs:unsignedShort
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 18000
source <xs:element name="rate" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedShort">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="18000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element BcastCycle/period
diagram
properties
isRef 0
content complex
children start end
source <xs:element name="period">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="start" type="atis:DateTimePair"/>
      <xs:element name="end" type="atis:DateTimePair"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element BcastCycle/period/start
diagram
type atis:DateTimePair
properties
isRef 0
content simple
source <xs:element name="start" type="atis:DateTimePair"/>

element BcastCycle/period/end
diagram
type atis:DateTimePair
properties
isRef 0
content simple
source <xs:element name="end" type="atis:DateTimePair"/>

element BcastCycle/duration
diagram
type restriction of xs:unsignedInt
properties
isRef 0
content simple
facets
minInclusive 1
maxInclusive 86400
source <xs:element name="duration">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedInt">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="86400"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element BcastCycle/localBcastCycle
diagram
type local:BcastCycle
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localBcastCycle" type="local:BcastCycle" minOccurs="0"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
