Documentation for ATIS-Draft-03-00-79

Element: schPushTimepoints

[Table of contents]

Name schPushTimepoints
Type SchPushTimepoints
Nillable no
Abstract no

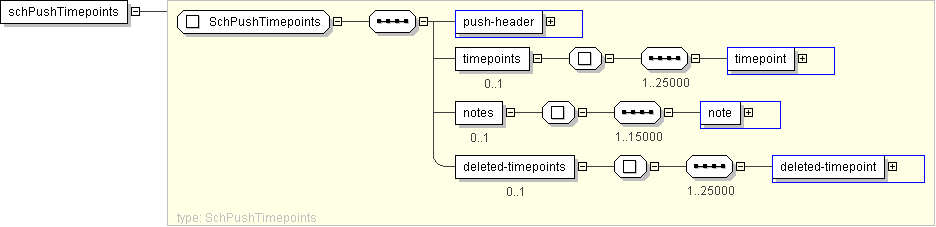

Logical Diagram
h-91148323 h-1932139757 h-594172994 h-2142997945
XML Instance Representation
<schPushTimepoints>
<push-header> CPTPushHeader </push-header> [1]
<timepoints> [0..1]
Start Sequence [1..25000]
<timepoint> SCHTimepointInfo </timepoint> [1]
End Sequence
</timepoints>
<notes> [0..1]
Start Sequence [1..15000]
<note> SCHNoteInfo </note> [1]
End Sequence
</notes>
<deleted-timepoints> [0..1]
Start Sequence [1..25000]
<deleted-timepoint> SCHTimepointIden </deleted-timepoint> [1]
End Sequence
</deleted-timepoints>
</schPushTimepoints>

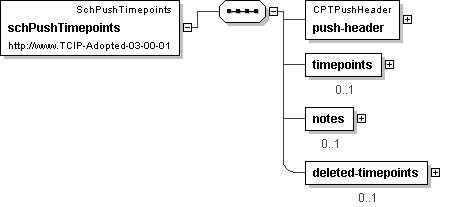

Diagram
h-1737467159 h1668873086 h-1088073133 h1668863444
Schema Component Representation
<xs:element name="schPushTimepoints" type=" SchPushTimepoints "/>
