Documentation for ATIS-Draft-03-00-79

Element: piAgencyFilesSub

[Table of contents]

Name piAgencyFilesSub
Type PiAgencyFilesSub
Nillable no
Abstract no

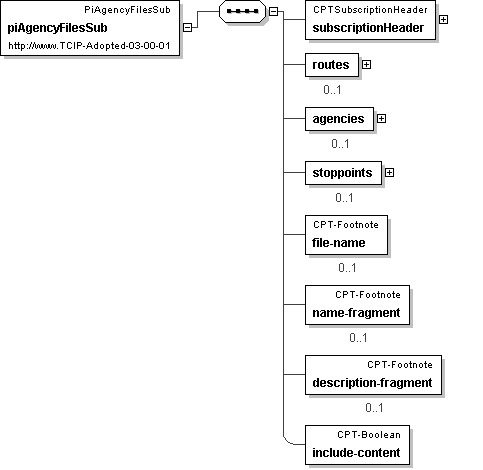

Logical Diagram
h-872182739 h-1124933139 h-1560728250 h220470408
XML Instance Representation
<piAgencyFilesSub>
<subscriptionHeader> CPTSubscriptionHeader </subscriptionHeader> [1]
<routes> [0..1]
Start Sequence [1..100]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<agencies> [0..1]
Start Sequence [1..5]
<agency> CPT-AgencyID </agency> [1]
End Sequence
</agencies>
<stoppoints> [0..1]
Start Sequence [1..100]
<stoppoint> CPTStoppointIden </stoppoint> [1]
End Sequence
</stoppoints>
<file-name> CPT-Footnote </file-name> [0..1]
<name-fragment> CPT-Footnote </name-fragment> [0..1]
<description-fragment> CPT-Footnote </description-fragment> [0..1]
<include-content> CPT-Boolean </include-content> [1]
</piAgencyFilesSub>

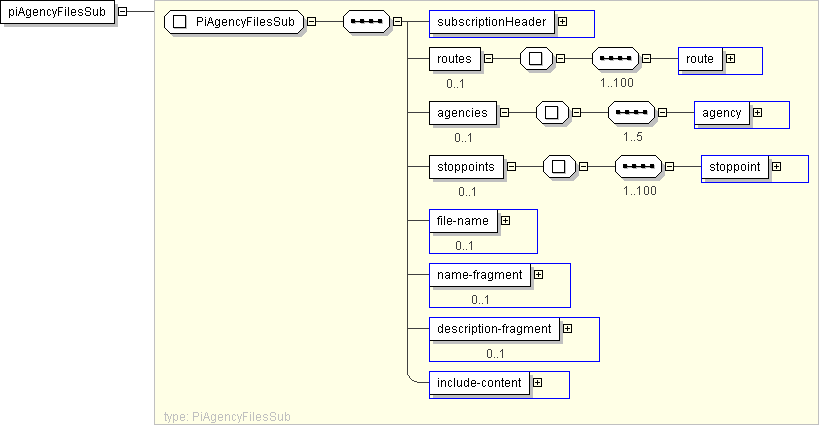

Diagram
h-527207252 h-963684166 h948193899 h2146772752 h-125442069 h-125442069 h-125442069 h325016637
Schema Component Representation
<xs:element name="piAgencyFilesSub" type=" PiAgencyFilesSub "/>
