Documentation for ATIS-Draft-03-00-79

Element: imCommandIncidentResponse

[Table of contents]

Name imCommandIncidentResponse
Type ImCommandIncidentResponse
Nillable no
Abstract no

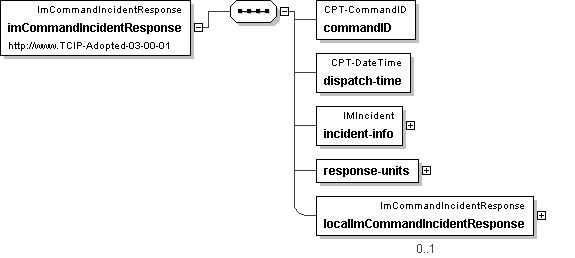

Logical Diagram
h572619974 h-507805050 h1694477138
XML Instance Representation
<imCommandIncidentResponse>
<commandID> CPT-CommandID </commandID> [1]
<dispatch-time> CPT-DateTime </dispatch-time> [1]
<incident-info> IMIncident </incident-info> [1]
<response-units> [1]
Start Sequence [1..10]
<response-unit> IMResponseUnit </response-unit> [1]
End Sequence
</response-units>
<localImCommandIncidentResponse> local:ImCommandIncidentResponse </localImCommandIncidentResponse> [0..1]
</imCommandIncidentResponse>

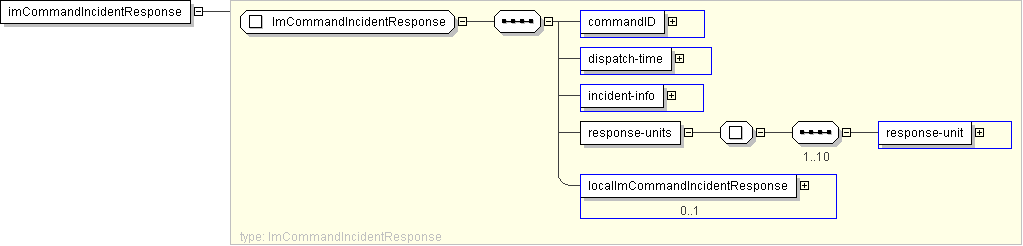

Diagram
h-453803909 h1272267302 h1729637435 h1085170766 h255987189
Schema Component Representation
<xs:element name="imCommandIncidentResponse" type=" ImCommandIncidentResponse "/>
