Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	IMResponseUnit
Used by (from the same schema document)	Complex Type ImCommandIncidentResponse , Complex Type IMIncident , Complex Type IMIncident
Abstract	no

XML Instance Representation

<...>

<unit-type> IM-ResponseUnitType </unit-type> [1]

<response-agency> IM-ResponseAgencyID </response-agency> [1]

<response-id> IM-ResponseUnitID </response-id> [1]

<eta> CPT-DateTime </eta> [0..1]

<arrival-time> CPT-DateTime </arrival-time> [1]

<current-status> IM-CurrentStatus </current-status> [1]

<current-loc> lrms:GeoLocation </current-loc> [1]

<response-route> atis:Route </response-route> [0..1]

<date-time> CPT-DateTime </date-time> [1]

<dispatcher-id> IM-DispatcherID </dispatcher-id> [0..1]

<personnel> [0..1]
Start Sequence [1..50]

<personnel-item> IMResponsePerson </personnel-item> [1]

End Sequence
</personnel>

<responseUnitLeader> IM-ResponseEmployeeID </responseUnitLeader> [1]

<responseUnitContact> IM-ResponseEmployeeID </responseUnitContact> [0..1]

<serviceData> CPT-Footnote </serviceData> [0..1]

<localIMResponseUnit> local:IMResponseUnit </localIMResponseUnit> [0..1]

</...>

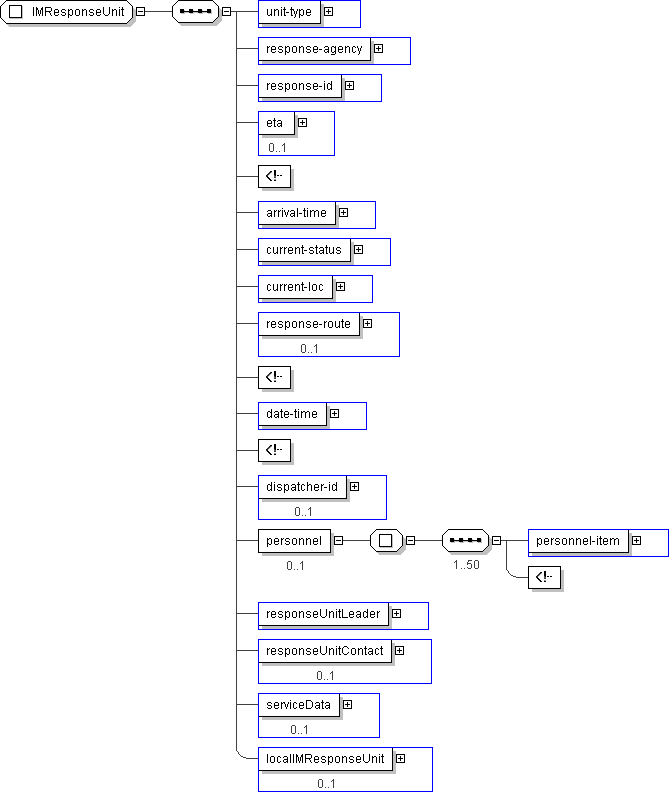

Schema Component Representation

<xs:complexType name="IMResponseUnit">

<xs:sequence>

<xs:element name="unit-type" type=" IM-ResponseUnitType "/>

<xs:element name="response-agency" type=" IM-ResponseAgencyID "/>

<xs:element name="response-id" type=" IM-ResponseUnitID "/>

<xs:element name="eta" type=" CPT-DateTime " minOccurs="0"/>

<-- specified when status =2 or =3 -->

<xs:element name="arrival-time" type=" CPT-DateTime "/>

<xs:element name="current-status" type=" IM-CurrentStatus "/>

<xs:element name="current-loc" type=" lrms:GeoLocation "/>

<xs:element name="response-route" type=" atis:Route " minOccurs="0"/>

<-- Path to incident site or rendezvous point -->

<xs:element name="date-time" type=" CPT-DateTime "/>

<-- (Current time) -->

<xs:element name="dispatcher-id" type=" IM-DispatcherID " minOccurs="0"/>

<xs:element name="personnel" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="50">

<xs:element name="personnel-item" type=" IMResponsePerson "/>

<-- crew -->

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="responseUnitLeader" type=" IM-ResponseEmployeeID "/>

<xs:element name="responseUnitContact" type=" IM-ResponseEmployeeID " minOccurs="0"/>

<xs:element name="serviceData" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="localIMResponseUnit" type=" local:IMResponseUnit " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
