Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

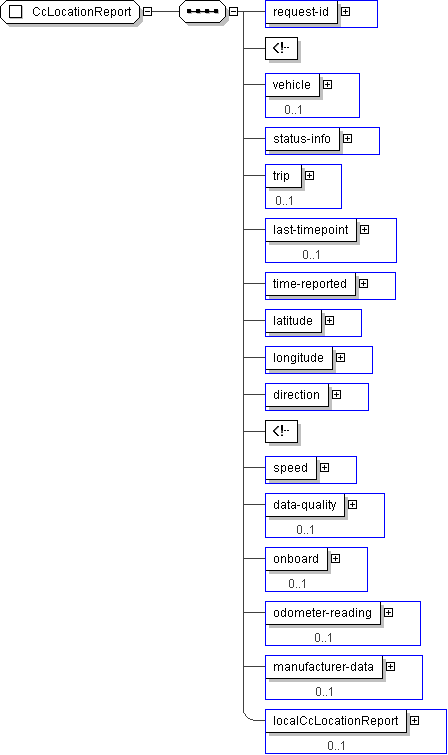

Name	CcLocationReport
Used by (from the same schema document)	Element ccLocationReport
Abstract	no

XML Instance Representation

<...>

<request-id> CPT-RequestIdentifier </request-id> [1]

<vehicle> CPTVehicleIden </vehicle> [0..1]

<status-info> CC-VehicleStatusBitmap </status-info> [1]

<trip> SCHTripIden </trip> [0..1]

<last-timepoint> SCHTimepointIden </last-timepoint> [0..1]

<time-reported> CPT-DateTime </time-reported> [1]

<latitude> lrms:Latitude </latitude> [1]

<longitude> lrms:Longitude </longitude> [1]

<direction> lrms:Angle </direction> [1]

<speed> OB-J1587-VelocityVectorSpeed </speed> [1]

<data-quality> SPDataQuality </data-quality> [0..1]

<onboard> OB-J1587-PassengerCounterPatronCount </onboard> [0..1]

<odometer-reading> CPT-GenericCounter </odometer-reading> [0..1]

<manufacturer-data> CC-ManufacturerData </manufacturer-data> [0..1]

<localCcLocationReport> local:CcLocationReport </localCcLocationReport> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CcLocationReport">

<xs:sequence>

<xs:element name="request-id" type=" CPT-RequestIdentifier "/>

<-- from subscription request, -->

<xs:element name="vehicle" type=" CPTVehicleIden " minOccurs="0"/>

<xs:element name="status-info" type=" CC-VehicleStatusBitmap "/>

<xs:element name="trip" type=" SCHTripIden " minOccurs="0"/>

<xs:element name="last-timepoint" type=" SCHTimepointIden " minOccurs="0"/>

<xs:element name="time-reported" type=" CPT-DateTime "/>

<xs:element name="latitude" type=" lrms:Latitude "/>

<xs:element name="longitude" type=" lrms:Longitude "/>

<xs:element name="direction" type=" lrms:Angle "/>

<-- direction of travel [deg] -->

<xs:element name="speed" type=" OB-J1587-VelocityVectorSpeed "/>

<xs:element name="data-quality" type=" SPDataQuality " minOccurs="0"/>

<xs:element name="onboard" type=" OB-J1587-PassengerCounterPatronCount " minOccurs="0"/>

<xs:element name="odometer-reading" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="manufacturer-data" type=" CC-ManufacturerData " minOccurs="0"/>

<xs:element name="localCcLocationReport" type=" local:CcLocationReport " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
