Documentation for ATIS-Draft-03-00-79

Element: ccLocationReport

[Table of contents]

Name ccLocationReport
Type CcLocationReport
Nillable no
Abstract no

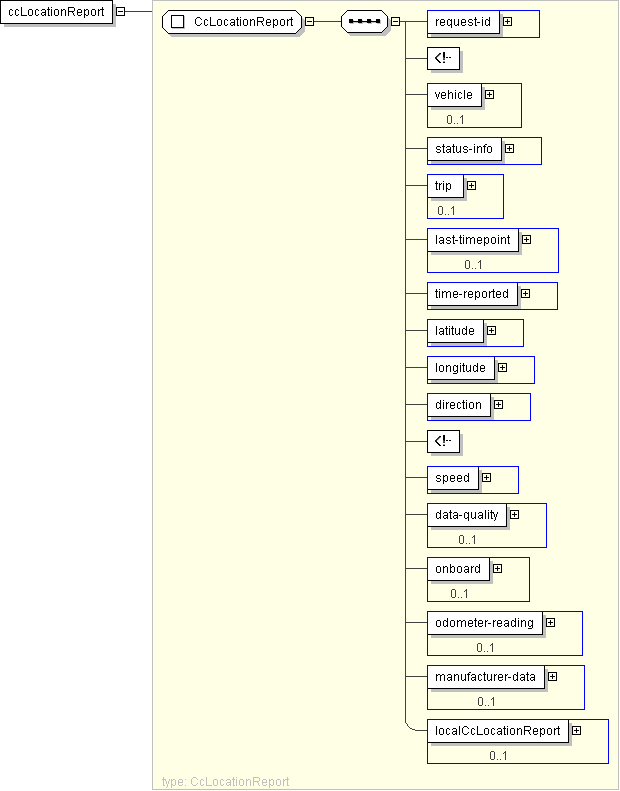

Logical Diagram
h-1556768535 h-573174904 h-1502977009 h-384395780 h926338623 h-1892229551
XML Instance Representation
<ccLocationReport>
<request-id> CPT-RequestIdentifier </request-id> [1]
<vehicle> CPTVehicleIden </vehicle> [0..1]
<status-info> CC-VehicleStatusBitmap </status-info> [1]
<trip> SCHTripIden </trip> [0..1]
<last-timepoint> SCHTimepointIden </last-timepoint> [0..1]
<time-reported> CPT-DateTime </time-reported> [1]
<latitude> lrms:Latitude </latitude> [1]
<longitude> lrms:Longitude </longitude> [1]
<direction> lrms:Angle </direction> [1]
<speed> OB-J1587-VelocityVectorSpeed </speed> [1]
<data-quality> SPDataQuality </data-quality> [0..1]
<onboard> OB-J1587-PassengerCounterPatronCount </onboard> [0..1]
<odometer-reading> CPT-GenericCounter </odometer-reading> [0..1]
<manufacturer-data> CC-ManufacturerData </manufacturer-data> [0..1]
<localCcLocationReport> local:CcLocationReport </localCcLocationReport> [0..1]
</ccLocationReport>

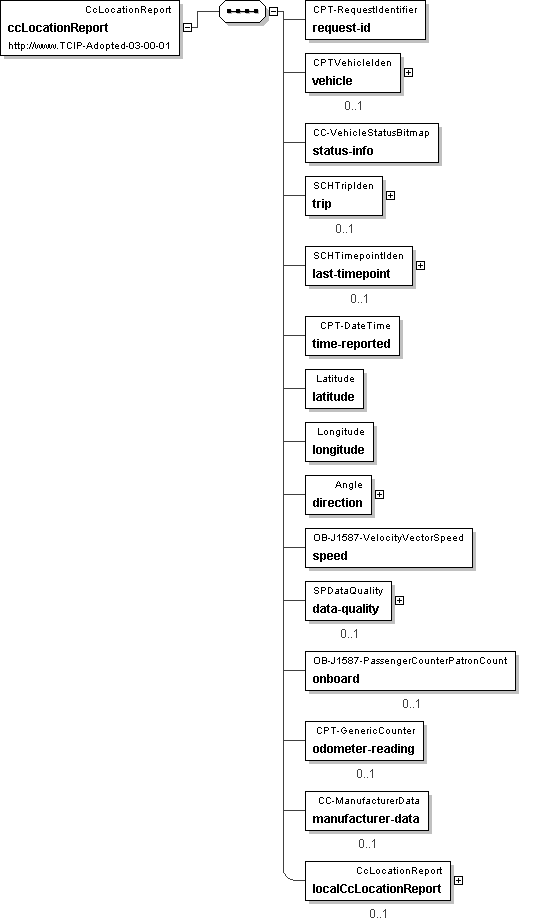

Diagram
h1358786157 h1471596526 h1440173733 h-1158373540 h1668863444 h1272267302 h-288803855 h1464038090 h-1126389906 h1344946322 h352582419 h1357598698 h240005744 h1340833923 h647194702
Schema Component Representation
<xs:element name="ccLocationReport" type=" CcLocationReport "/>
