Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

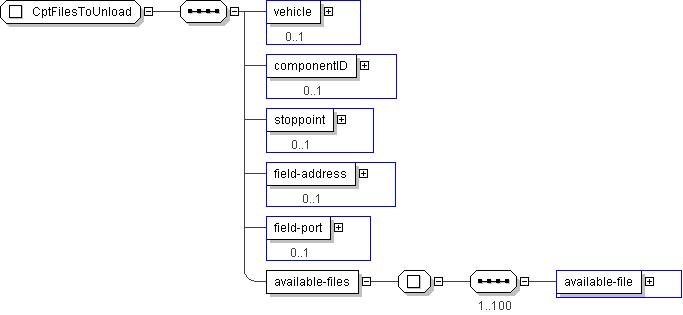

Name	CptFilesToUnload
Used by (from the same schema document)	Element cptFilesToUnload
Abstract	no

XML Instance Representation

<...>

<vehicle> CPTVehicleIden </vehicle> [0..1]

<componentID> OB-MID </componentID> [0..1]

<stoppoint> CPTStoppointIden </stoppoint> [0..1]

<field-address> CPT-IP-Address </field-address> [0..1]

<field-port> CPT-UDP-TCP-PortNumber </field-port> [0..1]

<available-files> [1]
Start Sequence [1..100]

<available-file> CPTUnloadFileHeader </available-file> [1]

End Sequence
</available-files>

</...>

Schema Component Representation

<xs:complexType name="CptFilesToUnload">

<xs:sequence>

<xs:element name="vehicle" type=" CPTVehicleIden " minOccurs="0"/>

<xs:element name="componentID" type=" OB-MID " minOccurs="0"/>

<xs:element name="stoppoint" type=" CPTStoppointIden " minOccurs="0"/>

<xs:element name="field-address" type=" CPT-IP-Address " minOccurs="0"/>

<xs:element name="field-port" type=" CPT-UDP-TCP-PortNumber " minOccurs="0"/>

<xs:element name="available-files">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="available-file" type=" CPTUnloadFileHeader "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
