Documentation for ATIS-Draft-03-00-79

Element: cptFilesToUnload

[Table of contents]

Name cptFilesToUnload
Type CptFilesToUnload
Nillable no
Abstract no

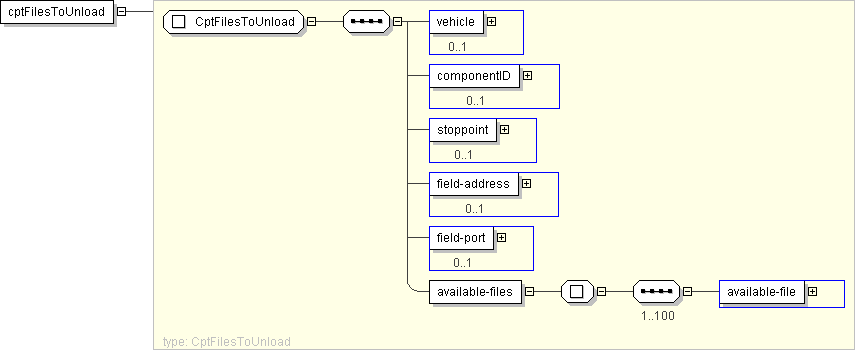

Logical Diagram
h-1556768535 h-2071098037 h1376672560
XML Instance Representation
<cptFilesToUnload>
<vehicle> CPTVehicleIden </vehicle> [0..1]
<componentID> OB-MID </componentID> [0..1]
<stoppoint> CPTStoppointIden </stoppoint> [0..1]
<field-address> CPT-IP-Address </field-address> [0..1]
<field-port> CPT-UDP-TCP-PortNumber </field-port> [0..1]
<available-files> [1]
Start Sequence [1..100]
<available-file> CPTUnloadFileHeader </available-file> [1]
End Sequence
</available-files>
</cptFilesToUnload>

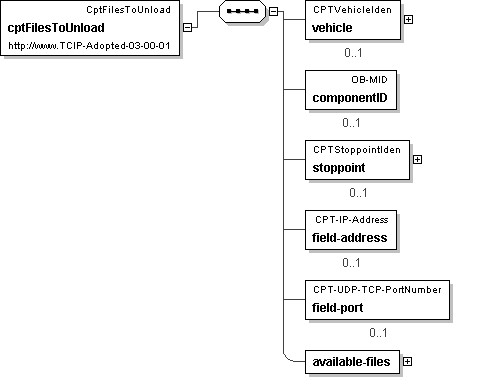

Diagram
h1471596526 h-199933997 h2146772752 h1940310233 h1843986733 h-615803222
Schema Component Representation
<xs:element name="cptFilesToUnload" type=" CptFilesToUnload "/>
