Documentation for ATIS-Draft-03-00-79

Element: schOperatorAssignmentListSub

[Table of contents]

Name schOperatorAssignmentListSub
Type SchOperatorAssignmentListSub
Nillable no
Abstract no

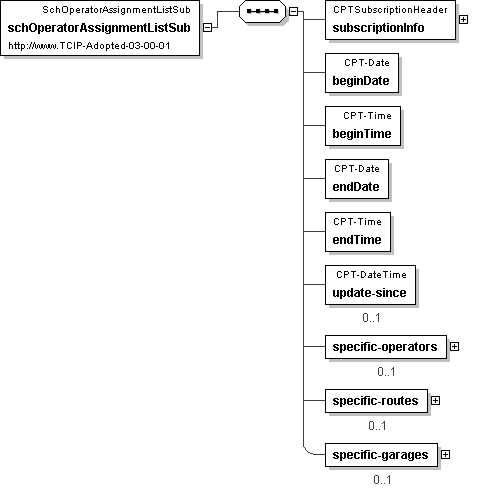

Logical Diagram
h-841091506 h1503907735 h902215938 h622141300
XML Instance Representation
<schOperatorAssignmentListSub>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<beginDate> CPT-Date </beginDate> [1]
<beginTime> CPT-Time </beginTime> [1]
<endDate> CPT-Date </endDate> [1]
<endTime> CPT-Time </endTime> [1]
<update-since> CPT-DateTime </update-since> [0..1]
<specific-operators> [0..1]
Start Sequence [1..25000]
<specific-operator> CPTOperatorIden </specific-operator> [1]
End Sequence
</specific-operators>
<specific-routes> [0..1]
Start Sequence [1..500]
<specific-route> SCHRouteIden </specific-route> [1]
End Sequence
</specific-routes>
<specific-garages> [0..1]
Start Sequence [1..100]
<specific-garage> CPTTransitFacilityIden </specific-garage> [1]
End Sequence
</specific-garages>
</schOperatorAssignmentListSub>

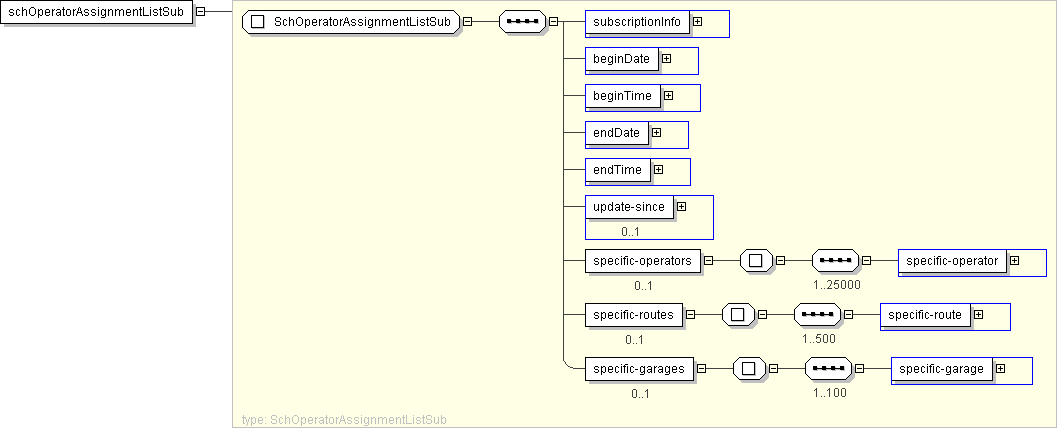

Diagram
h-527207252 h-1969881159 h-1969397032 h-1969881159 h-1969397032 h1272267302 h324755946 h-963684166 h2133900120
Schema Component Representation
<xs:element name="schOperatorAssignmentListSub" type=" SchOperatorAssignmentListSub "/>
