Documentation for ATIS-Draft-03-00-79

Element: spGeolocationData

[Table of contents]

Name spGeolocationData
Type SpGeolocationData
Nillable no
Abstract no

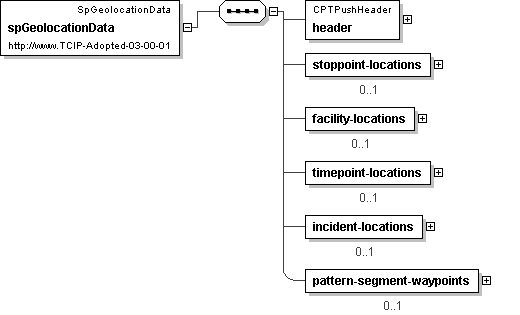

Logical Diagram
h-1421071056 h927917404 h-482515241 h1075596081 h1777831494 h1864249848
XML Instance Representation
<spGeolocationData>
<header> CPTPushHeader </header> [1]
<stoppoint-locations> [0..1]
Start Sequence [1..25000]
<stoppoint-location> SPStopGeoLoc </stoppoint-location> [1]
End Sequence
</stoppoint-locations>
<facility-locations> [0..1]
Start Sequence [1..1000]
<facility-location> SPFacilityGeoLoc </facility-location> [1]
End Sequence
</facility-locations>
<timepoint-locations> [0..1]
Start Sequence [1..10000]
<timepoint-location> SPTimepointGeoLoc </timepoint-location> [1]
End Sequence
</timepoint-locations>
<incident-locations> [0..1]
Start Sequence [1..100]
<incident-location> SPIncidentLocation </incident-location> [1]
End Sequence
</incident-locations>
<pattern-segment-waypoints> [0..1]
Start Sequence [1..1000]
<pattern-segment-waypoint> SPSegmentGeolocation </pattern-segment-waypoint> [1]
End Sequence
</pattern-segment-waypoints>
</spGeolocationData>

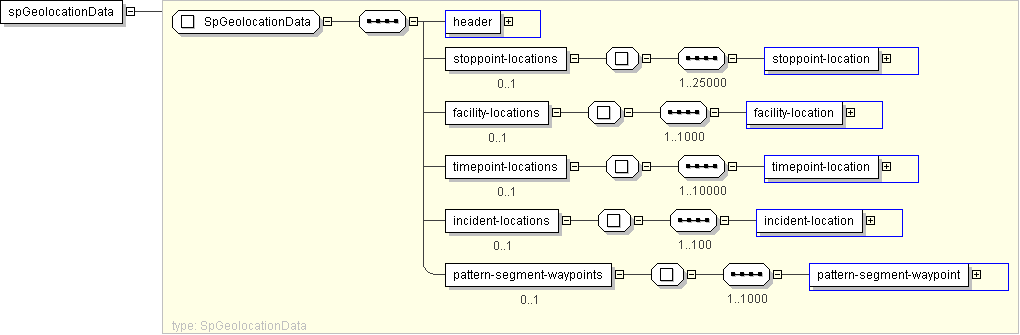

Diagram
h-1737467159 h825407475 h2104066260 h-1417435888 h-758369207 h-1515461131
Schema Component Representation
<xs:element name="spGeolocationData" type=" SpGeolocationData "/>
