Documentation for ATIS-Draft-03-00-79

Element: piAccessibilityListSub

[Table of contents]

Name piAccessibilityListSub
Type PiAccessibilityListSub
Nillable no
Abstract no

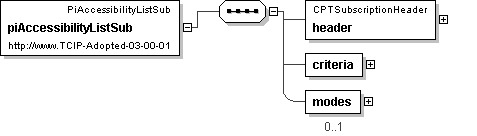

Logical Diagram
h-1421071056 h-1077342910 h-595111891
XML Instance Representation
<piAccessibilityListSub>
<header> CPTSubscriptionHeader </header> [1]
<criteria> [1]
Start Choice [1]
<agency> CPT-AgencyID </agency> [1]
<routes> [1]
Start Sequence [1..100]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<stoppoints> [1]
Start Sequence [1..100]
<stoppoint> CPTStoppointIden </stoppoint> [1]
End Sequence
</stoppoints>
End Choice
</criteria>
<modes> [0..1]
Start Sequence [1..10]
<mode> CPT-Mode </mode> [1]
End Sequence
</modes>
</piAccessibilityListSub>

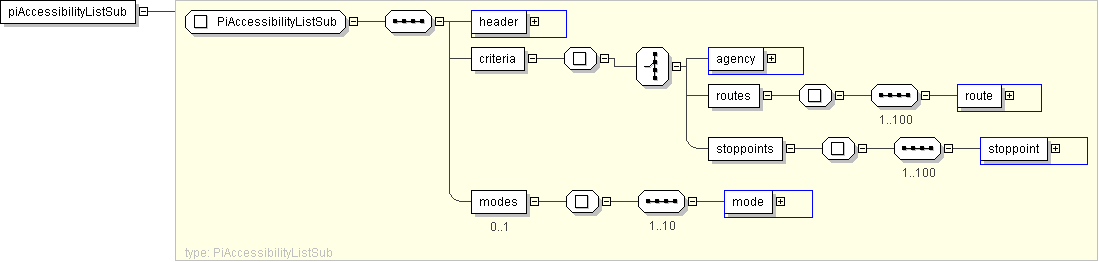

Diagram
h-527207252 h948193899 h-963684166 h2146772752 h-1969600082
Schema Component Representation
<xs:element name="piAccessibilityListSub" type=" PiAccessibilityListSub "/>
