Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Super-types:

None

Sub-types:

None

Name	PI-PIDTextColor
Used by (from the same schema document)	Complex Type CCCannedAnnouncementRecord , Complex Type PITextToDisplay
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 15 Locally defined type: Base XSD Type: string value comes from list: {'red'\|'yellow'\|'green'\|'blue'\|'white'\|'blackRed'\|'blackYellow'\|'blackGreen'\|'blackBlue'\|'blackWhite'} Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}
Application Data	red (1) -- red letters on dark background yellow (2) -- yellow letters on dark background green (3) -- green letters on dark background blue (4) -- blue letters on dark background white (5) -- white letters on dark background -- 6-10 reserved blackRed (11) -- dark letters on red background blackYellow (12) -- dark letters on yellow background blackGreen (13) -- dark letters on green background blackBlue (14) -- dark letters on blue background blackWhite (15) -- dark letters on white background -- 16-127 reserved -- 128-200 local use

Name

PI-PIDTextColor

Used by (from the same schema document)

Complex Type CCCannedAnnouncementRecord , Complex Type PITextToDisplay

Content

Union of following types:
- Locally defined type:
  - Base XSD Type: unsignedInt
  - 1 <= value <= 15
- Locally defined type:
  - Base XSD Type: string
  - value comes from list: {'red'|'yellow'|'green'|'blue'|'white'|'blackRed'|'blackYellow'|'blackGreen'|'blackBlue'|'blackWhite'}
- Locally defined type:
  - Base XSD Type: unsignedInt
  - 128 <= value <= 255
- Locally defined type:
  - Base XSD Type: string
  - value comes from list: {'insert-local-values-here'}

Application Data

red (1) -- red letters on dark background yellow (2) -- yellow letters on dark background green (3) -- green letters on dark background blue (4) -- blue letters on dark background white (5) -- white letters on dark background -- 6-10 reserved blackRed (11) -- dark letters on red background blackYellow (12) -- dark letters on yellow background blackGreen (13) -- dark letters on green background blackBlue (14) -- dark letters on blue background blackWhite (15) -- dark letters on white background -- 16-127 reserved -- 128-200 local use

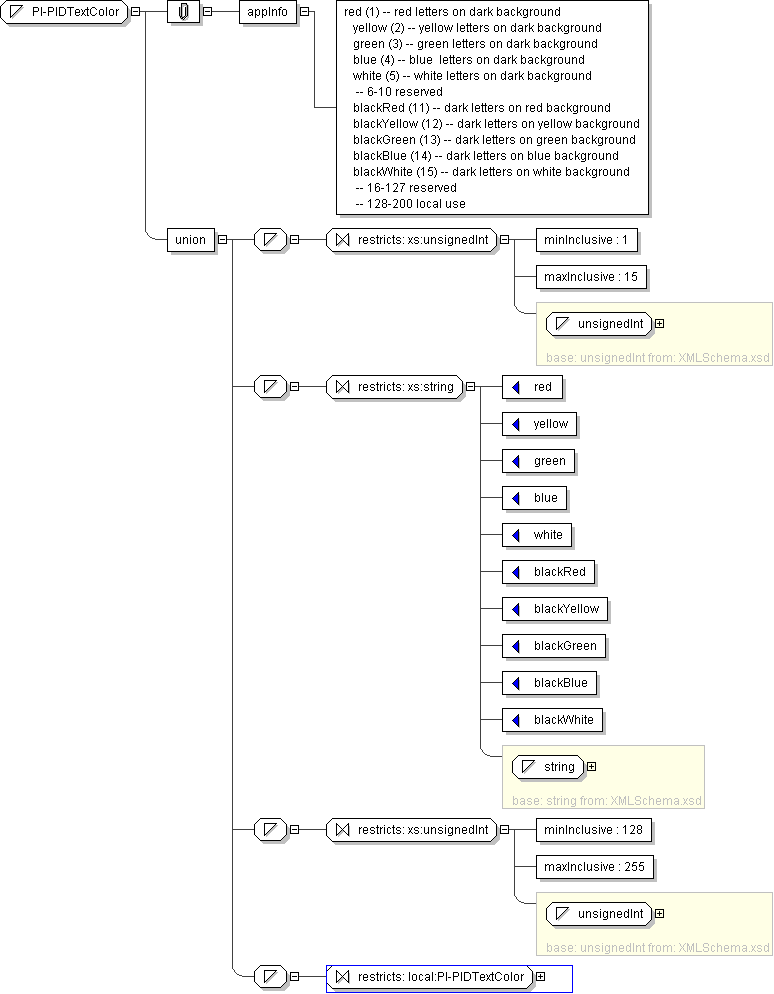

Diagram

Schema Component Representation

<xs:simpleType name="PI-PIDTextColor">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="15"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="red"/>

<xs:enumeration value="yellow"/>

<xs:enumeration value="green"/>

<xs:enumeration value="blue"/>

<xs:enumeration value="white"/>

<xs:enumeration value="blackRed"/>

<xs:enumeration value="blackYellow"/>

<xs:enumeration value="blackGreen"/>

<xs:enumeration value="blackBlue"/>

<xs:enumeration value="blackWhite"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:PI-PIDTextColor "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
