Name	CCCannedAnnouncementRecord
Used by (from the same schema document)	Complex Type CcAnnouncementInfo
Abstract	no

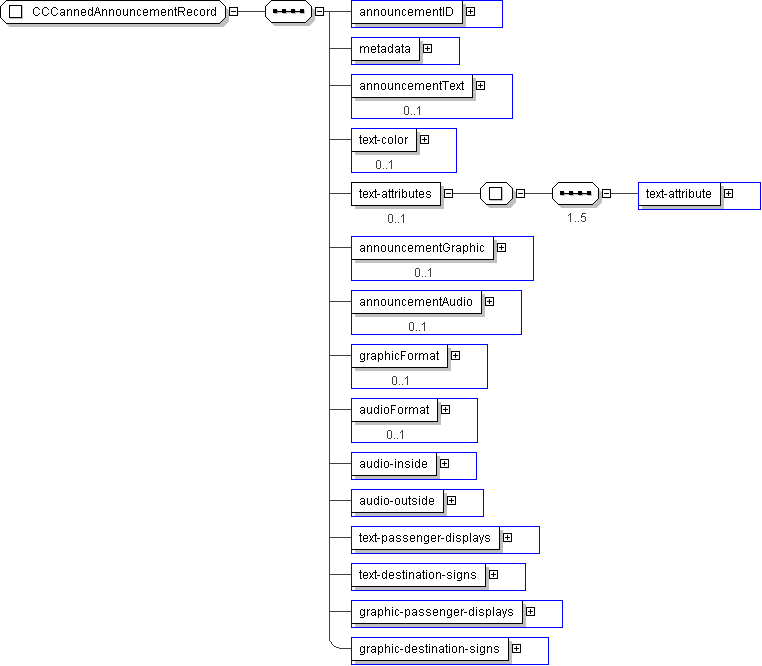

XML Instance Representation

<...>

<announcementID> CC-AnnouncementMsgID </announcementID> [1]

<metadata> CPTRowMetaData </metadata> [1]

<announcementText> OB-TextMessage </announcementText> [0..1]

<text-color> PI-PIDTextColor </text-color> [0..1]

<text-attributes> [0..1]
Start Sequence [1..5]

<text-attribute> PI-PIDTextAttribute </text-attribute> [1]

End Sequence
</text-attributes>

<announcementGraphic> PI-BinaryImageData </announcementGraphic> [0..1]

<announcementAudio> PI-BinaryAudioData </announcementAudio> [0..1]

<graphicFormat> PI-GraphicFormat </graphicFormat> [0..1]

<audioFormat> PI-AudioFormat </audioFormat> [0..1]

<audio-inside> CPT-Boolean </audio-inside> [1]

<audio-outside> CPT-Boolean </audio-outside> [1]

<text-passenger-displays> CPT-Boolean </text-passenger-displays> [1]

<text-destination-signs> CPT-Boolean </text-destination-signs> [1]

<graphic-passenger-displays> CPT-Boolean </graphic-passenger-displays> [1]

<graphic-destination-signs> CPT-Boolean </graphic-destination-signs> [1]

</...>

Schema Component Representation

<xs:complexType name="CCCannedAnnouncementRecord">

<xs:sequence>

<xs:element name="announcementID" type=" CC-AnnouncementMsgID "/>

<xs:element name="metadata" type=" CPTRowMetaData "/>

<xs:element name="announcementText" type=" OB-TextMessage " minOccurs="0"/>

<xs:element name="text-color" type=" PI-PIDTextColor " minOccurs="0"/>

<xs:element name="text-attributes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="5">

<xs:element name="text-attribute" type=" PI-PIDTextAttribute "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="announcementGraphic" type=" PI-BinaryImageData " minOccurs="0"/>

<xs:element name="announcementAudio" type=" PI-BinaryAudioData " minOccurs="0"/>

<xs:element name="graphicFormat" type=" PI-GraphicFormat " minOccurs="0"/>

<xs:element name="audioFormat" type=" PI-AudioFormat " minOccurs="0"/>

<xs:element name="audio-inside" type=" CPT-Boolean "/>

<xs:element name="audio-outside" type=" CPT-Boolean "/>

<xs:element name="text-passenger-displays" type=" CPT-Boolean "/>

<xs:element name="text-destination-signs" type=" CPT-Boolean "/>

<xs:element name="graphic-passenger-displays" type=" CPT-Boolean "/>

<xs:element name="graphic-destination-signs" type=" CPT-Boolean "/>

</xs:sequence>

</xs:complexType>
