Documentation for ATIS-Draft-03-00-79

Element: piAnnouncementsList

[Table of contents]

Name piAnnouncementsList
Type PiAnnouncementsList
Nillable no
Abstract no

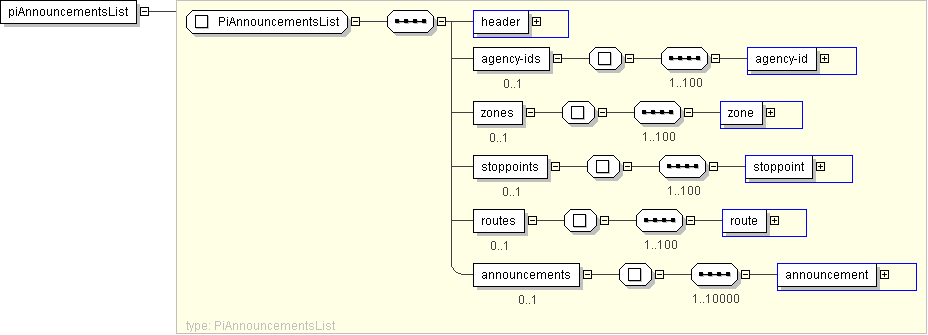

Logical Diagram
h-1421071056 h-903160301 h-583096508 h220470408 h-1124933139 h-250452983
XML Instance Representation
<piAnnouncementsList>
<header> CPTSubscriptionHeader </header> [1]
<agency-ids> [0..1]
Start Sequence [1..100]
<agency-id> CPT-AgencyID </agency-id> [1]
End Sequence
</agency-ids>
<zones> [0..1]
Start Sequence [1..100]
<zone> PIServiceZoneIden </zone> [1]
End Sequence
</zones>
<stoppoints> [0..1]
Start Sequence [1..100]
<stoppoint> CPTStoppointIden </stoppoint> [1]
End Sequence
</stoppoints>
<routes> [0..1]
Start Sequence [1..100]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<announcements> [0..1]
Start Sequence [1..10000]
<announcement> PIAnnouncement </announcement> [1]
End Sequence
</announcements>
</piAnnouncementsList>

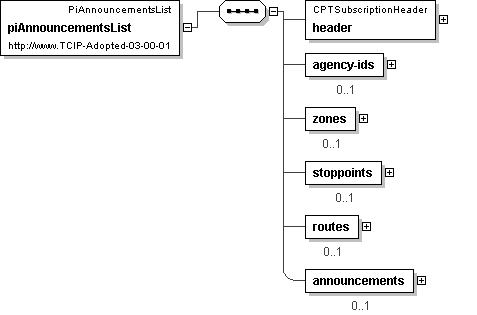

Diagram
h-527207252 h948193899 h506659239 h2146772752 h-963684166 h1732362629
Schema Component Representation
<xs:element name="piAnnouncementsList" type=" PiAnnouncementsList "/>
