Documentation for ATIS-Draft-03-00-79

Element: schTripDetailList

[Table of contents]

Name schTripDetailList
Type SchTripDetailList
Nillable no
Abstract no

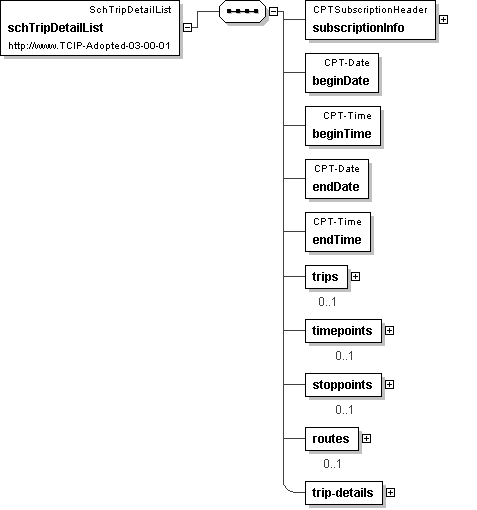

Logical Diagram
h-841091506 h-588552725 h-1932139757 h220470408 h-1124933139 h-60565251
XML Instance Representation
<schTripDetailList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<beginDate> CPT-Date </beginDate> [1]
<beginTime> CPT-Time </beginTime> [1]
<endDate> CPT-Date </endDate> [1]
<endTime> CPT-Time </endTime> [1]
<trips> [0..1]
Start Sequence [1..100000]
<trip> SCHTripIden </trip> [1]
End Sequence
</trips>
<timepoints> [0..1]
Start Sequence [1..500]
<timepoint> SCHTimepointIden </timepoint> [1]
End Sequence
</timepoints>
<stoppoints> [0..1]
Start Sequence [1..25000]
<stoppoint> CPTStoppointIden </stoppoint> [1]
End Sequence
</stoppoints>
<routes> [0..1]
Start Sequence [1..100]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<trip-details> [1]
Start Sequence [1..500]
<trip-detail> SCHTripDetailInfo </trip-detail> [1]
End Sequence
</trip-details>
</schTripDetailList>

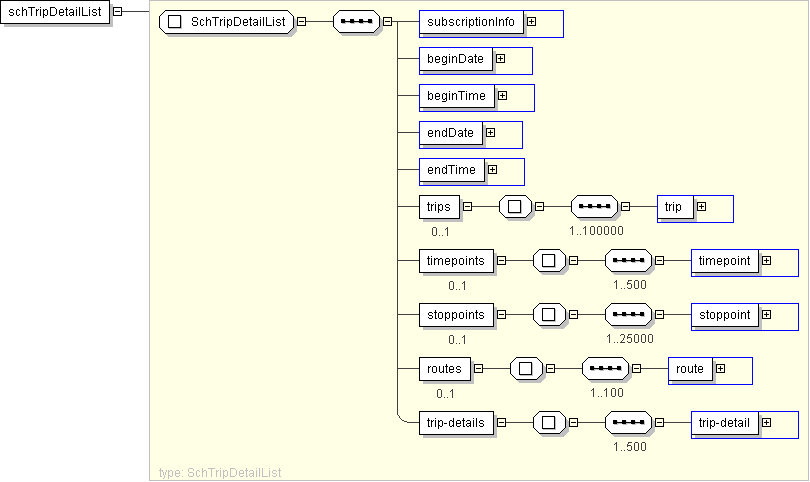

Diagram
h-527207252 h-1969881159 h-1969397032 h-1969881159 h-1969397032 h-1158373540 h1668863444 h2146772752 h-963684166 h-1542054153
Schema Component Representation
<xs:element name="schTripDetailList" type=" SchTripDetailList "/>
