Documentation for ATIS-Draft-03-00-79

Element: cptUnloadControl

[Table of contents]

Name cptUnloadControl
Type CptUnloadControl
Nillable no
Abstract no

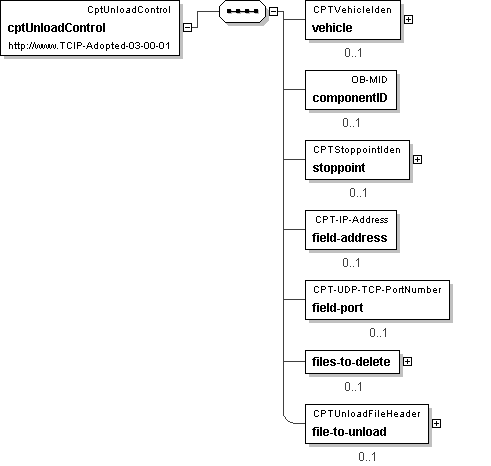

Logical Diagram
h-1556768535 h-2071098037 h-1624710620 h821440291
XML Instance Representation
<cptUnloadControl>
<vehicle> CPTVehicleIden </vehicle> [0..1]
<componentID> OB-MID </componentID> [0..1]
<stoppoint> CPTStoppointIden </stoppoint> [0..1]
<field-address> CPT-IP-Address </field-address> [0..1]
<field-port> CPT-UDP-TCP-PortNumber </field-port> [0..1]
<files-to-delete> [0..1]
Start Sequence [1..100]
<files-to-delete-item> CPTUnloadFileHeader </files-to-delete-item> [1]
End Sequence
</files-to-delete>
<file-to-unload> CPTUnloadFileHeader </file-to-unload> [0..1]
</cptUnloadControl>

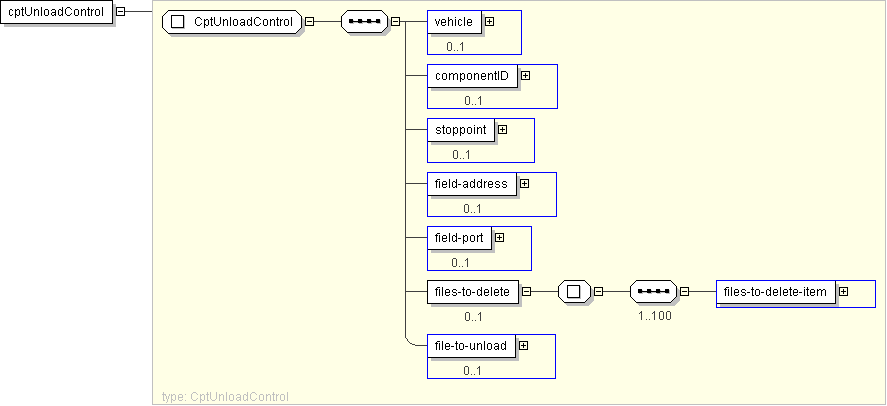

Diagram
h1471596526 h-199933997 h2146772752 h1940310233 h1843986733 h-615803222 h-615803222
Schema Component Representation
<xs:element name="cptUnloadControl" type=" CptUnloadControl "/>
