Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CptUnloadControl
Used by (from the same schema document)	Element cptUnloadControl
Abstract	no

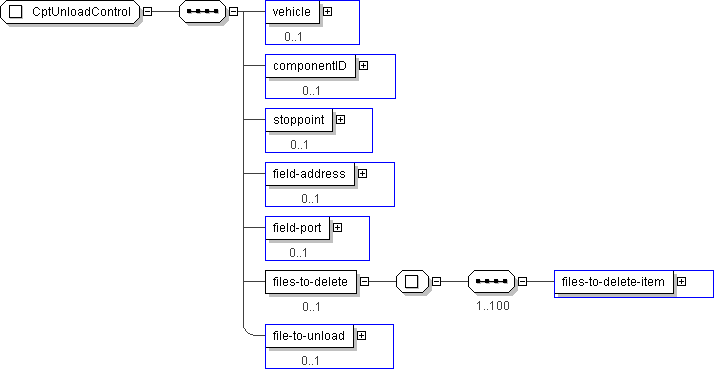

XML Instance Representation

<...>

<vehicle> CPTVehicleIden </vehicle> [0..1]

<componentID> OB-MID </componentID> [0..1]

<stoppoint> CPTStoppointIden </stoppoint> [0..1]

<field-address> CPT-IP-Address </field-address> [0..1]

<field-port> CPT-UDP-TCP-PortNumber </field-port> [0..1]

<files-to-delete> [0..1]
Start Sequence [1..100]

<files-to-delete-item> CPTUnloadFileHeader </files-to-delete-item> [1]

End Sequence
</files-to-delete>

<file-to-unload> CPTUnloadFileHeader </file-to-unload> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CptUnloadControl">

<xs:sequence>

<xs:element name="vehicle" type=" CPTVehicleIden " minOccurs="0"/>

<xs:element name="componentID" type=" OB-MID " minOccurs="0"/>

<xs:element name="stoppoint" type=" CPTStoppointIden " minOccurs="0"/>

<xs:element name="field-address" type=" CPT-IP-Address " minOccurs="0"/>

<xs:element name="field-port" type=" CPT-UDP-TCP-PortNumber " minOccurs="0"/>

<xs:element name="files-to-delete" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="files-to-delete-item" type=" CPTUnloadFileHeader "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="file-to-unload" type=" CPTUnloadFileHeader " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
