Documentation for ATIS-Draft-03-00-79

Element: fcUnloadData

[Table of contents]

Name fcUnloadData
Type FcUnloadData
Nillable no
Abstract no

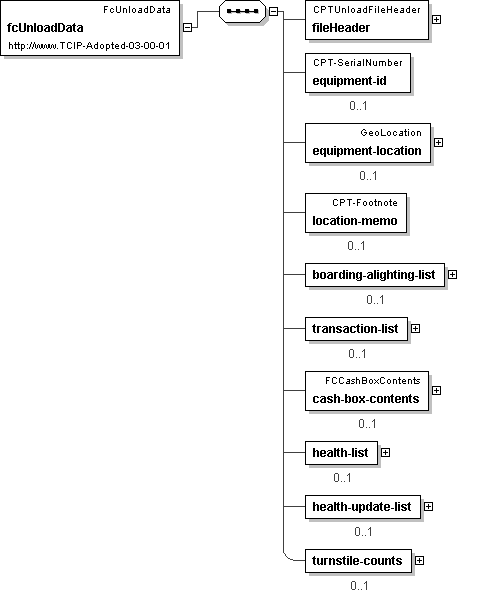

Logical Diagram
h-2078410676 h-152892617 h-1100135828 h137606416 h1340746419 h-363606868 h-922384556 h-401622320
XML Instance Representation
<fcUnloadData>
<fileHeader> CPTUnloadFileHeader </fileHeader> [1]
<equipment-id> CPT-SerialNumber </equipment-id> [0..1]
<equipment-location> lrms:GeoLocation </equipment-location> [0..1]
<location-memo> CPT-Footnote </location-memo> [0..1]
<boarding-alighting-list> [0..1]
Start Sequence [1..100000]
<boarding-alighting> FCBoardingAlightingRecord </boarding-alighting> [1]
End Sequence
</boarding-alighting-list>
<transaction-list> [0..1]
Start Sequence [1..100000]
<transaction> FCTransactionRecord </transaction> [1]
End Sequence
</transaction-list>
<cash-box-contents> FCCashBoxContents </cash-box-contents> [0..1]
<health-list> [0..1]
Start Sequence [1..15000]
<health> FCComponentEventInstance </health> [1]
End Sequence
</health-list>
<health-update-list> [0..1]
Start Sequence [1..15000]
<health-update> FCComponentEventStatusReport </health-update> [1]
End Sequence
</health-update-list>
<turnstile-counts> [0..1]
Start Sequence [1..500]
<turnstile-count> FCTurnstileCountRecord </turnstile-count> [1]
End Sequence
</turnstile-counts>
</fcUnloadData>

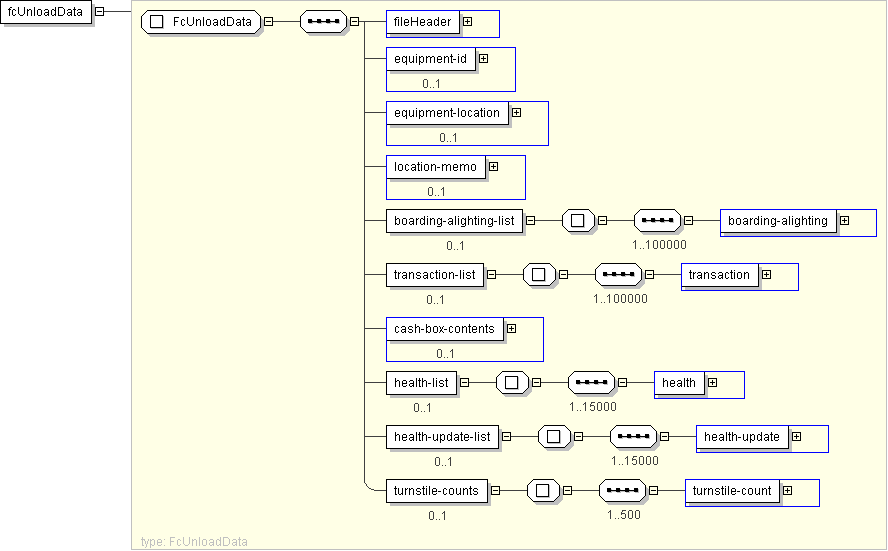

Diagram
h-615803222 h-565816472 h-542031743 h-125442069 h-631340032 h958820621 h2098650256 h-1227843116 h-319610491 h354532190
Schema Component Representation
<xs:element name="fcUnloadData" type=" FcUnloadData "/>
