Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

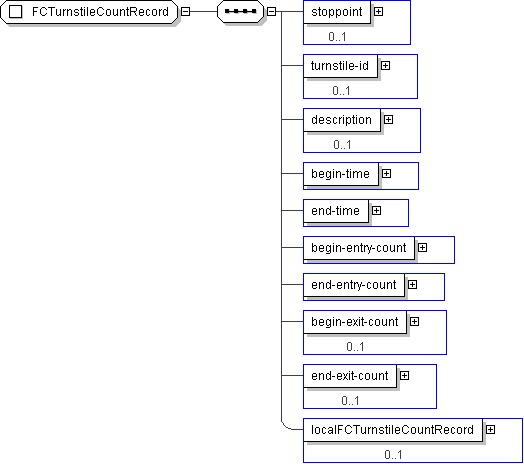

Name	FCTurnstileCountRecord
Used by (from the same schema document)	Complex Type FcUnloadData
Abstract	no

XML Instance Representation

<...>

<stoppoint> CPTStoppointIden </stoppoint> [0..1]

<turnstile-id> FC-TurnstileID </turnstile-id> [0..1]

<description> CPT-Footnote </description> [0..1]

<begin-time> CPT-DateTime </begin-time> [1]

<end-time> CPT-DateTime </end-time> [1]

<begin-entry-count> CPT-GenericCounter </begin-entry-count> [1]

<end-entry-count> CPT-GenericCounter </end-entry-count> [1]

<begin-exit-count> CPT-GenericCounter </begin-exit-count> [0..1]

<end-exit-count> CPT-GenericCounter </end-exit-count> [0..1]

<localFCTurnstileCountRecord> local:FCTurnstileCountRecord </localFCTurnstileCountRecord> [0..1]

</...>

Schema Component Representation

<xs:complexType name="FCTurnstileCountRecord">

<xs:sequence>

<xs:element name="stoppoint" type=" CPTStoppointIden " minOccurs="0"/>

<xs:element name="turnstile-id" type=" FC-TurnstileID " minOccurs="0"/>

<xs:element name="description" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="begin-time" type=" CPT-DateTime "/>

<xs:element name="end-time" type=" CPT-DateTime "/>

<xs:element name="begin-entry-count" type=" CPT-GenericCounter "/>

<xs:element name="end-entry-count" type=" CPT-GenericCounter "/>

<xs:element name="begin-exit-count" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="end-exit-count" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="localFCTurnstileCountRecord" type=" local:FCTurnstileCountRecord " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
