Documentation for ATIS-Draft-03-00-79

Element: schMasterScheduleVersionSub

[Table of contents]

Name schMasterScheduleVersionSub
Type SchMasterScheduleVersionSub
Nillable no
Abstract no

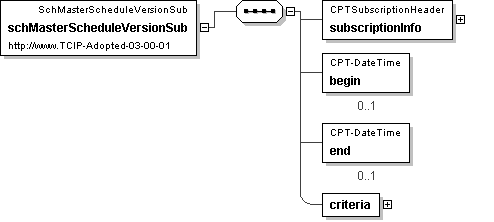

Logical Diagram
h-841091506 h-1077342910
XML Instance Representation
<schMasterScheduleVersionSub>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<begin> CPT-DateTime </begin> [0..1]
<end> CPT-DateTime </end> [0..1]
<criteria> [1]
Start Choice [1]
<agencies> [1]
Start Sequence [1..20]
<agency> CPT-AgencyID </agency> [1]
End Sequence
</agencies>
<routes> [1]
Start Sequence [1..100]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
End Choice
</criteria>
</schMasterScheduleVersionSub>

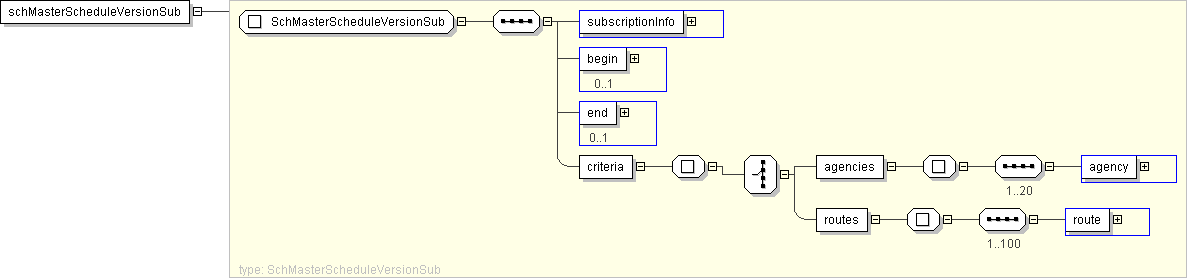

Diagram
h-527207252 h1272267302 h1272267302 h948193899 h-963684166
Schema Component Representation
<xs:element name="schMasterScheduleVersionSub" type=" SchMasterScheduleVersionSub "/>
