Documentation for ATIS-Draft-03-00-79

Element: schUnassignedOperatorList

[Table of contents]

Name schUnassignedOperatorList
Type SchUnassignedOperatorList
Nillable no
Abstract no

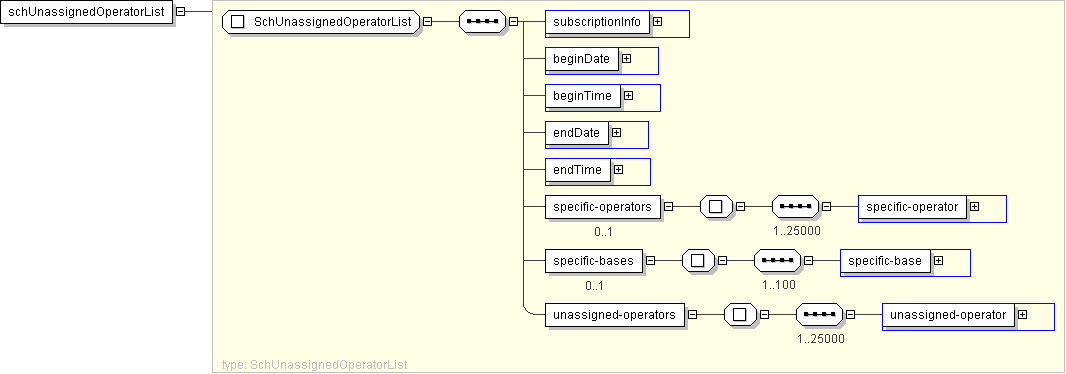

Logical Diagram
h-841091506 h1503907735 h845191946 h696442572
XML Instance Representation
<schUnassignedOperatorList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<beginDate> CPT-Date </beginDate> [1]
<beginTime> CPT-Time </beginTime> [1]
<endDate> CPT-Date </endDate> [1]
<endTime> CPT-Time </endTime> [1]
<specific-operators> [0..1]
Start Sequence [1..25000]
<specific-operator> CPTOperatorIden </specific-operator> [1]
End Sequence
</specific-operators>
<specific-bases> [0..1]
Start Sequence [1..100]
<specific-base> CPTTransitFacilityIden </specific-base> [1]
End Sequence
</specific-bases>
<unassigned-operators> [1]
Start Sequence [1..25000]
<unassigned-operator> SCHUnassignedOperator </unassigned-operator> [1]
End Sequence
</unassigned-operators>
</schUnassignedOperatorList>

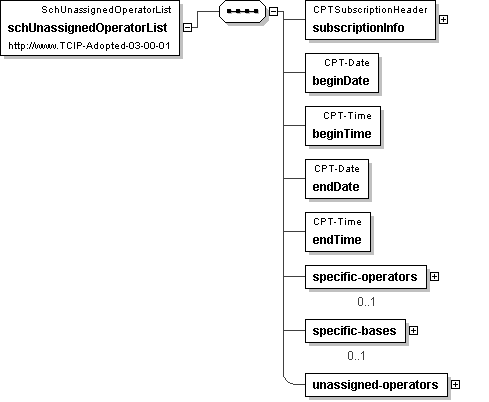

Diagram
h-527207252 h-1969881159 h-1969397032 h-1969881159 h-1969397032 h324755946 h2133900120 h-1574510594
Schema Component Representation
<xs:element name="schUnassignedOperatorList" type=" SchUnassignedOperatorList "/>
