Documentation for ATIS-Draft-03-00-79

Element: ccManualAlarm

[Table of contents]

Name ccManualAlarm
Type CcManualAlarm
Nillable no
Abstract no

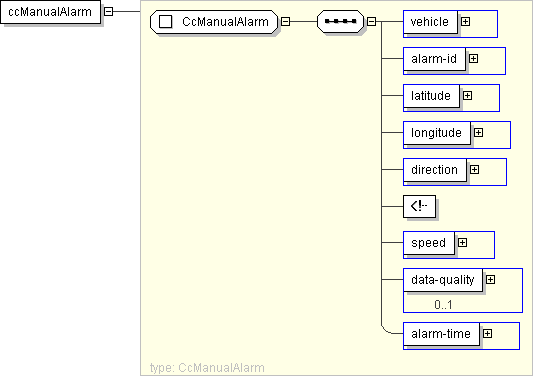

Logical Diagram
h-1556768535 h-384395780 h926338623
XML Instance Representation
<ccManualAlarm>
<vehicle> CPTVehicleIden </vehicle> [1]
<alarm-id> CC-ManualAlarmID </alarm-id> [1]
<latitude> lrms:Latitude </latitude> [1]
<longitude> lrms:Longitude </longitude> [1]
<direction> lrms:Angle </direction> [1]
<speed> OB-J1587-VelocityVectorSpeed </speed> [1]
<data-quality> SPDataQuality </data-quality> [0..1]
<alarm-time> CPT-DateTime </alarm-time> [1]
</ccManualAlarm>

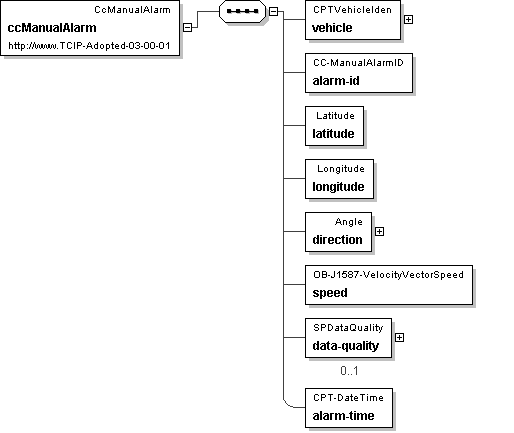

Diagram
h1471596526 h1582180382 h-288803855 h1464038090 h-1126389906 h1344946322 h352582419 h1272267302
Schema Component Representation
<xs:element name="ccManualAlarm" type=" CcManualAlarm "/>
