Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

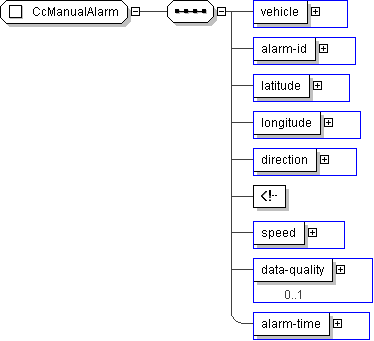

Name	CcManualAlarm
Used by (from the same schema document)	Element ccManualAlarm
Abstract	no

XML Instance Representation

<...>

<vehicle> CPTVehicleIden </vehicle> [1]

<alarm-id> CC-ManualAlarmID </alarm-id> [1]

<latitude> lrms:Latitude </latitude> [1]

<longitude> lrms:Longitude </longitude> [1]

<direction> lrms:Angle </direction> [1]

<speed> OB-J1587-VelocityVectorSpeed </speed> [1]

<data-quality> SPDataQuality </data-quality> [0..1]

<alarm-time> CPT-DateTime </alarm-time> [1]

</...>

Schema Component Representation

<xs:complexType name="CcManualAlarm">

<xs:sequence>

<xs:element name="vehicle" type=" CPTVehicleIden "/>

<xs:element name="alarm-id" type=" CC-ManualAlarmID "/>

<xs:element name="latitude" type=" lrms:Latitude "/>

<xs:element name="longitude" type=" lrms:Longitude "/>

<xs:element name="direction" type=" lrms:Angle "/>

<-- direction of travel [deg] -->

<xs:element name="speed" type=" OB-J1587-VelocityVectorSpeed "/>

<xs:element name="data-quality" type=" SPDataQuality " minOccurs="0"/>

<xs:element name="alarm-time" type=" CPT-DateTime "/>

</xs:sequence>

</xs:complexType>
