Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

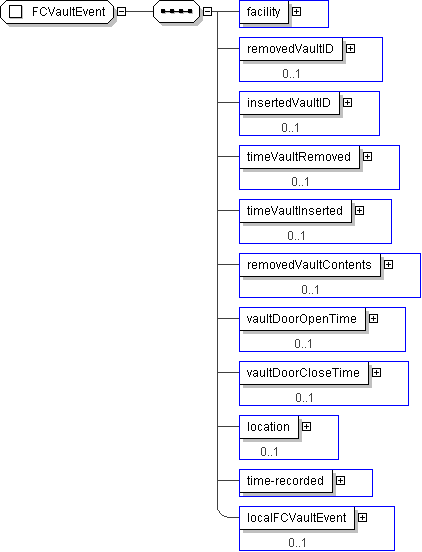

Name	FCVaultEvent
Used by (from the same schema document)	Complex Type FcReportVaultEvent
Abstract	no

XML Instance Representation

<...>

<facility> CPTTransitFacilityIden </facility> [1]

<removedVaultID> CPT-SerialNumber </removedVaultID> [0..1]

<insertedVaultID> CPT-SerialNumber </insertedVaultID> [0..1]

<timeVaultRemoved> CPT-DateTime </timeVaultRemoved> [0..1]

<timeVaultInserted> CPT-DateTime </timeVaultInserted> [0..1]

<removedVaultContents> FCVaultContents </removedVaultContents> [0..1]

<vaultDoorOpenTime> CPT-DateTime </vaultDoorOpenTime> [0..1]

<vaultDoorCloseTime> CPT-DateTime </vaultDoorCloseTime> [0..1]

<location> lrms:GeoLocation </location> [0..1]

<time-recorded> CPT-DateTime </time-recorded> [1]

<localFCVaultEvent> local:FCVaultEvent </localFCVaultEvent> [0..1]

</...>

Schema Component Representation

<xs:complexType name="FCVaultEvent">

<xs:sequence>

<xs:element name="facility" type=" CPTTransitFacilityIden "/>

<xs:element name="removedVaultID" type=" CPT-SerialNumber " minOccurs="0"/>

<xs:element name="insertedVaultID" type=" CPT-SerialNumber " minOccurs="0"/>

<xs:element name="timeVaultRemoved" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="timeVaultInserted" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="removedVaultContents" type=" FCVaultContents " minOccurs="0"/>

<xs:element name="vaultDoorOpenTime" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="vaultDoorCloseTime" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="location" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="time-recorded" type=" CPT-DateTime "/>

<xs:element name="localFCVaultEvent" type=" local:FCVaultEvent " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
