Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

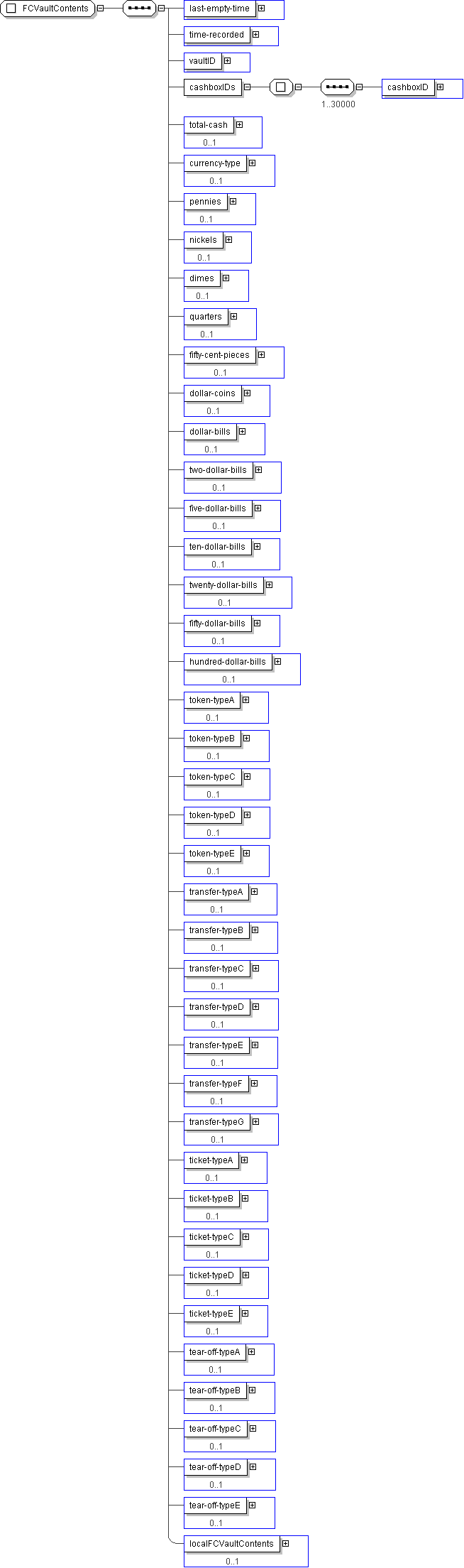

Name	FCVaultContents
Used by (from the same schema document)	Complex Type FCVaultEvent
Abstract	no

XML Instance Representation

<...>

<last-empty-time> CPT-DateTime </last-empty-time> [1]

<time-recorded> CPT-DateTime </time-recorded> [1]

<vaultID> CPT-SerialNumber </vaultID> [1]

<cashboxIDs> [1]
Start Sequence [1..30000]

<cashboxID> CPT-SerialNumber </cashboxID> [1]

End Sequence
</cashboxIDs>

<total-cash> FC-MonetaryValue </total-cash> [0..1]

<currency-type> FC-MonetaryInstrAuth </currency-type> [0..1]

<pennies> CPT-GenericCounter </pennies> [0..1]

<nickels> CPT-GenericCounter </nickels> [0..1]

<dimes> CPT-GenericCounter </dimes> [0..1]

<quarters> CPT-GenericCounter </quarters> [0..1]

<fifty-cent-pieces> CPT-GenericCounter </fifty-cent-pieces> [0..1]

<dollar-coins> CPT-GenericCounter </dollar-coins> [0..1]

<dollar-bills> CPT-GenericCounter </dollar-bills> [0..1]

<two-dollar-bills> CPT-GenericCounter </two-dollar-bills> [0..1]

<five-dollar-bills> CPT-GenericCounter </five-dollar-bills> [0..1]

<ten-dollar-bills> CPT-GenericCounter </ten-dollar-bills> [0..1]

<twenty-dollar-bills> CPT-GenericCounter </twenty-dollar-bills> [0..1]

<fifty-dollar-bills> CPT-GenericCounter </fifty-dollar-bills> [0..1]

<hundred-dollar-bills> CPT-GenericCounter </hundred-dollar-bills> [0..1]

<token-typeA> CPT-GenericCounter </token-typeA> [0..1]

<token-typeB> CPT-GenericCounter </token-typeB> [0..1]

<token-typeC> CPT-GenericCounter </token-typeC> [0..1]

<token-typeD> CPT-GenericCounter </token-typeD> [0..1]

<token-typeE> CPT-GenericCounter </token-typeE> [0..1]

<transfer-typeA> CPT-GenericCounter </transfer-typeA> [0..1]

<transfer-typeB> CPT-GenericCounter </transfer-typeB> [0..1]

<transfer-typeC> CPT-GenericCounter </transfer-typeC> [0..1]

<transfer-typeD> CPT-GenericCounter </transfer-typeD> [0..1]

<transfer-typeE> CPT-GenericCounter </transfer-typeE> [0..1]

<transfer-typeF> CPT-GenericCounter </transfer-typeF> [0..1]

<transfer-typeG> CPT-GenericCounter </transfer-typeG> [0..1]

<ticket-typeA> CPT-GenericCounter </ticket-typeA> [0..1]

<ticket-typeB> CPT-GenericCounter </ticket-typeB> [0..1]

<ticket-typeC> CPT-GenericCounter </ticket-typeC> [0..1]

<ticket-typeD> CPT-GenericCounter </ticket-typeD> [0..1]

<ticket-typeE> CPT-GenericCounter </ticket-typeE> [0..1]

<tear-off-typeA> CPT-GenericCounter </tear-off-typeA> [0..1]

<tear-off-typeB> CPT-GenericCounter </tear-off-typeB> [0..1]

<tear-off-typeC> CPT-GenericCounter </tear-off-typeC> [0..1]

<tear-off-typeD> CPT-GenericCounter </tear-off-typeD> [0..1]

<tear-off-typeE> CPT-GenericCounter </tear-off-typeE> [0..1]

<localFCVaultContents> local:FCVaultContents </localFCVaultContents> [0..1]

</...>

Schema Component Representation

<xs:complexType name="FCVaultContents">

<xs:sequence>

<xs:element name="last-empty-time" type=" CPT-DateTime "/>

<xs:element name="time-recorded" type=" CPT-DateTime "/>

<xs:element name="vaultID" type=" CPT-SerialNumber "/>

<xs:element name="cashboxIDs">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="30000">

<xs:element name="cashboxID" type=" CPT-SerialNumber "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="total-cash" type=" FC-MonetaryValue " minOccurs="0"/>

<xs:element name="currency-type" type=" FC-MonetaryInstrAuth " minOccurs="0"/>

<xs:element name="pennies" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="nickels" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="dimes" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="quarters" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="fifty-cent-pieces" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="dollar-coins" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="dollar-bills" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="two-dollar-bills" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="five-dollar-bills" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="ten-dollar-bills" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="twenty-dollar-bills" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="fifty-dollar-bills" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="hundred-dollar-bills" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="token-typeA" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="token-typeB" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="token-typeC" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="token-typeD" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="token-typeE" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="transfer-typeA" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="transfer-typeB" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="transfer-typeC" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="transfer-typeD" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="transfer-typeE" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="transfer-typeF" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="transfer-typeG" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="ticket-typeA" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="ticket-typeB" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="ticket-typeC" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="ticket-typeD" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="ticket-typeE" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="tear-off-typeA" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="tear-off-typeB" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="tear-off-typeC" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="tear-off-typeD" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="tear-off-typeE" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="localFCVaultContents" type=" local:FCVaultContents " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
