Documentation for ATIS-Draft-03-00-79

Element: schRosterListSub

[Table of contents]

Name schRosterListSub
Type SchRosterListSub
Nillable no
Abstract no

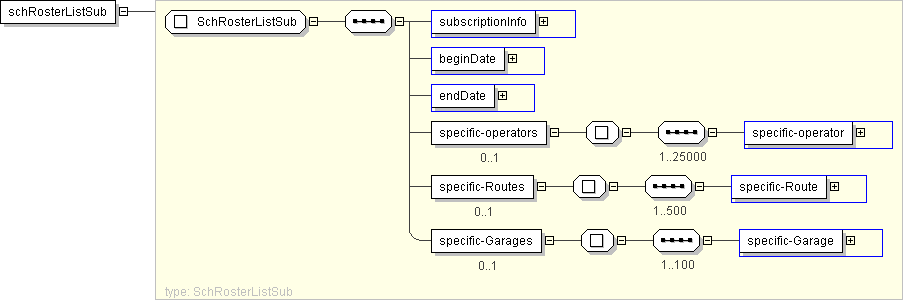

Logical Diagram
h-841091506 h1503907735 h-13916894 h-2008172716
XML Instance Representation
<schRosterListSub>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<beginDate> CPT-Date </beginDate> [1]
<endDate> CPT-Date </endDate> [1]
<specific-operators> [0..1]
Start Sequence [1..25000]
<specific-operator> CPTOperatorIden </specific-operator> [1]
End Sequence
</specific-operators>
<specific-Routes> [0..1]
Start Sequence [1..500]
<specific-Route> SCHRouteIden </specific-Route> [1]
End Sequence
</specific-Routes>
<specific-Garages> [0..1]
Start Sequence [1..100]
<specific-Garage> CPTTransitFacilityIden </specific-Garage> [1]
End Sequence
</specific-Garages>
</schRosterListSub>

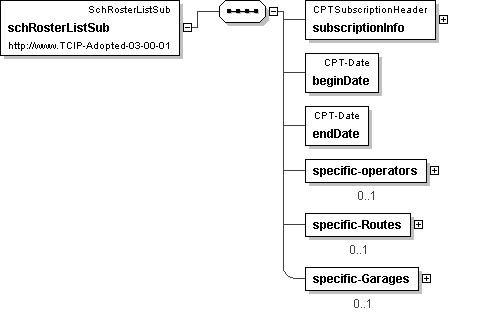

Diagram
h-527207252 h-1969881159 h-1969881159 h324755946 h-963684166 h2133900120
Schema Component Representation
<xs:element name="schRosterListSub" type=" SchRosterListSub "/>
