Documentation for ATIS-Draft-03-00-79

Element: fcReportCashboxEvent

[Table of contents]

Name fcReportCashboxEvent
Type FcReportCashboxEvent
Nillable no
Abstract no

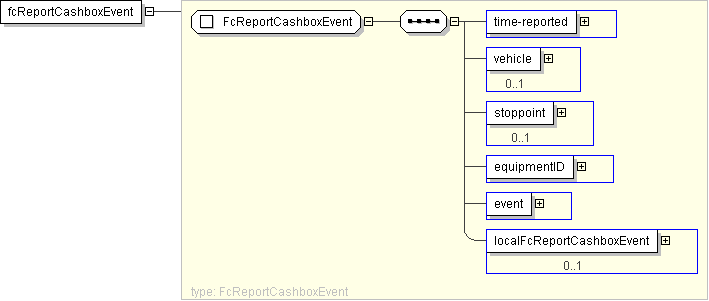

Logical Diagram
h-1556768535 h-2071098037 h-602290281 h-122284229
XML Instance Representation
<fcReportCashboxEvent>
<time-reported> CPT-DateTime </time-reported> [1]
<vehicle> CPTVehicleIden </vehicle> [0..1]
<stoppoint> CPTStoppointIden </stoppoint> [0..1]
<equipmentID> CPT-SerialNumber </equipmentID> [1]
<event> FCCashBoxEvent </event> [1]
<localFcReportCashboxEvent> local:FcReportCashboxEvent </localFcReportCashboxEvent> [0..1]
</fcReportCashboxEvent>

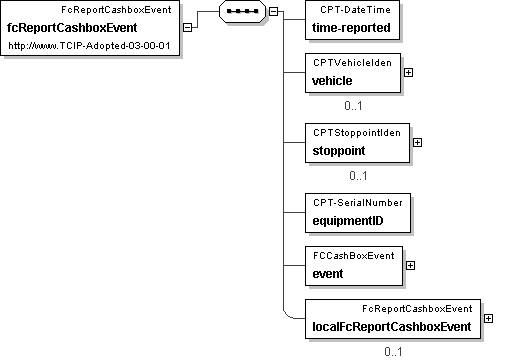

Diagram
h1272267302 h1471596526 h2146772752 h-565816472 h-637709084 h445864632
Schema Component Representation
<xs:element name="fcReportCashboxEvent" type=" FcReportCashboxEvent "/>
