Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

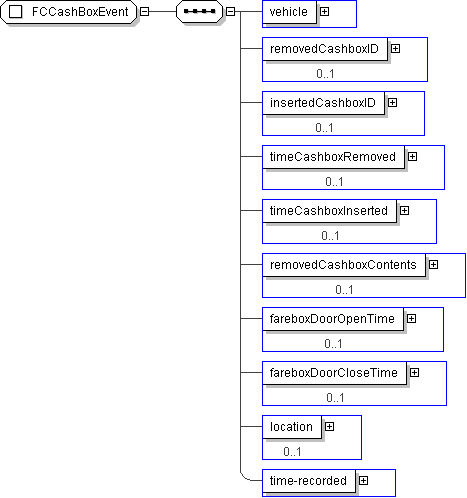

Name	FCCashBoxEvent
Used by (from the same schema document)	Complex Type FcReportCashboxEvent
Abstract	no

XML Instance Representation

<...>

<vehicle> CPTVehicleIden </vehicle> [1]

<removedCashboxID> CPT-SerialNumber </removedCashboxID> [0..1]

<insertedCashboxID> CPT-SerialNumber </insertedCashboxID> [0..1]

<timeCashboxRemoved> CPT-DateTime </timeCashboxRemoved> [0..1]

<timeCashboxInserted> CPT-DateTime </timeCashboxInserted> [0..1]

<removedCashboxContents> FCCashBoxContents </removedCashboxContents> [0..1]

<fareboxDoorOpenTime> CPT-DateTime </fareboxDoorOpenTime> [0..1]

<fareboxDoorCloseTime> CPT-DateTime </fareboxDoorCloseTime> [0..1]

<location> lrms:GeoLocation </location> [0..1]

<time-recorded> CPT-DateTime </time-recorded> [1]

</...>

Schema Component Representation

<xs:complexType name="FCCashBoxEvent">

<xs:sequence>

<xs:element name="vehicle" type=" CPTVehicleIden "/>

<xs:element name="removedCashboxID" type=" CPT-SerialNumber " minOccurs="0"/>

<xs:element name="insertedCashboxID" type=" CPT-SerialNumber " minOccurs="0"/>

<xs:element name="timeCashboxRemoved" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="timeCashboxInserted" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="removedCashboxContents" type=" FCCashBoxContents " minOccurs="0"/>

<xs:element name="fareboxDoorOpenTime" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="fareboxDoorCloseTime" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="location" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="time-recorded" type=" CPT-DateTime "/>

</xs:sequence>

</xs:complexType>
