Documentation for ATIS-Draft-03-00-79

Element: cptShelterList

[Table of contents]

Name cptShelterList
Type CptShelterList
Nillable no
Abstract no

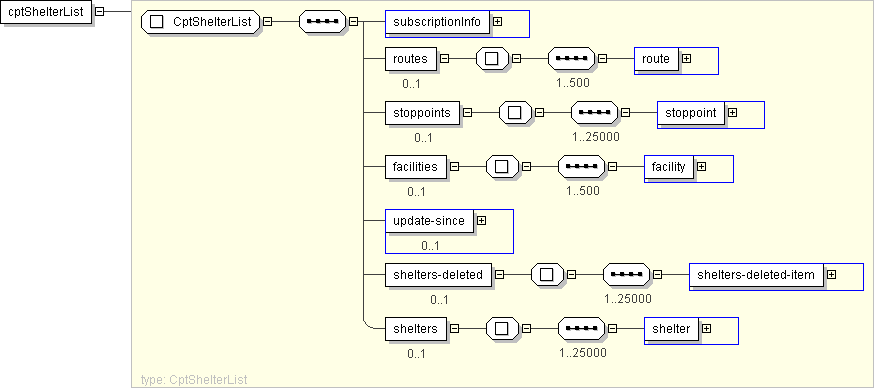

Logical Diagram
h-841091506 h-1124933139 h220470408 h1280861092 h-1153662883 h631246353
XML Instance Representation
<cptShelterList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<routes> [0..1]
Start Sequence [1..500]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<stoppoints> [0..1]
Start Sequence [1..25000]
<stoppoint> CPTStoppointIden </stoppoint> [1]
End Sequence
</stoppoints>
<facilities> [0..1]
Start Sequence [1..500]
<facility> CPTTransitFacilityIden </facility> [1]
End Sequence
</facilities>
<update-since> CPT-DateTime </update-since> [0..1]
<shelters-deleted> [0..1]
Start Sequence [1..25000]
<shelters-deleted-item> CPTShelterIden </shelters-deleted-item> [1]
End Sequence
</shelters-deleted>
<shelters> [0..1]
Start Sequence [1..25000]
<shelter> CPTShelter </shelter> [1]
End Sequence
</shelters>
</cptShelterList>

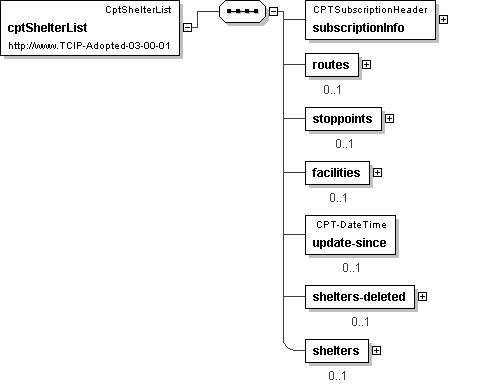

Diagram
h-527207252 h-963684166 h2146772752 h2133900120 h1272267302 h1758097703 h1424308099
Schema Component Representation
<xs:element name="cptShelterList" type=" CptShelterList "/>
