Documentation for ATIS-Draft-03-00-79

Element: fcReportValidationErrors

[Table of contents]

Name fcReportValidationErrors
Type FcReportValidationErrors
Nillable no
Abstract no

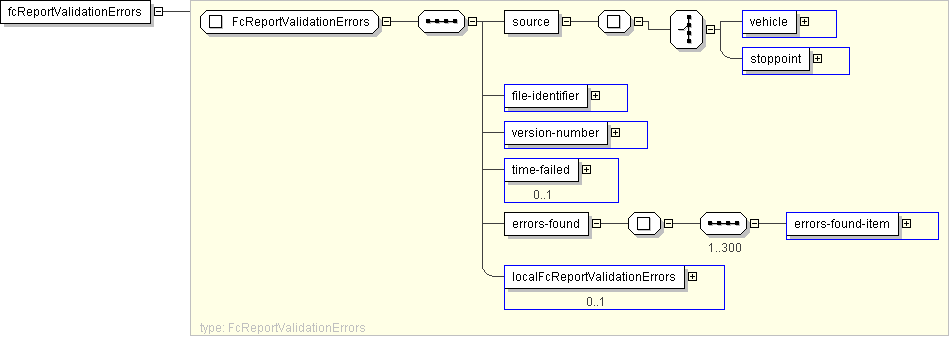

Logical Diagram
h-1096305986 h1143743235 h650499133
XML Instance Representation
<fcReportValidationErrors>
<source> [1]
Start Choice [1]
<vehicle> CPTVehicleIden </vehicle> [1]
<stoppoint> CPTStoppointIden </stoppoint> [1]
End Choice
</source>
<file-identifier> CPT-FileIdentifier </file-identifier> [1]
<version-number> CPT-FileVersion </version-number> [1]
<time-failed> CPT-DateTime </time-failed> [0..1]
<errors-found> [1]
Start Sequence [1..300]
<errors-found-item> FCValidationError </errors-found-item> [1]
End Sequence
</errors-found>
<localFcReportValidationErrors> local:FcReportValidationErrors </localFcReportValidationErrors> [0..1]
</fcReportValidationErrors>

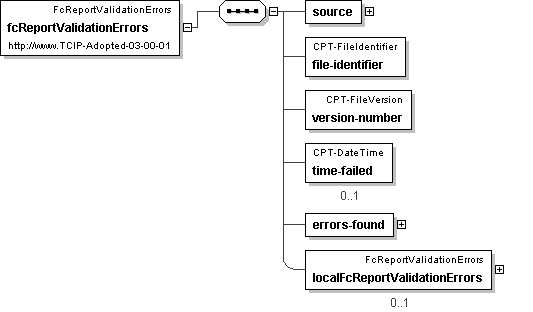

Diagram
h1471596526 h2146772752 h-1941335664 h1398126929 h1272267302 h748837069 h-919924422
Schema Component Representation
<xs:element name="fcReportValidationErrors" type=" FcReportValidationErrors "/>
