Documentation for ATIS-Draft-03-00-79

Complex Type: FCValidationError

[Table of contents]

Super-types: None
Sub-types: None
Name FCValidationError
Used by (from the same schema document) Complex Type FcReportValidationErrors
Abstract no
XML Instance Representation
<...>
<error-type> FC-ValidationErrorType </error-type> [1]
<affected-fare-records> [0..1]
Start Sequence [1..100]
<affected-fare-record> FC-FareRecordID </affected-fare-record> [1]
End Sequence
</affected-fare-records>
<affected-stop-fares> [0..1]
Start Sequence [1..100]
<affected-stop-fare> FC-FareDefinitionRecordID </affected-stop-fare> [1]
End Sequence
</affected-stop-fares>
<affected-fare-zones> [0..1]
Start Sequence [1..100]
<affected-fare-zone> FCFareZoneIden </affected-fare-zone> [1]
End Sequence
</affected-fare-zones>
<affected-zone-fares> [0..1]
Start Sequence [1..100]
<affected-zone-fare> FC-FareDefinitionRecordID </affected-zone-fare> [1]
End Sequence
</affected-zone-fares>
<affected-bad-medias> [0..1]
Start Sequence [1..100]
<affected-bad-media> FCFareMediaPair </affected-bad-media> [1]
End Sequence
</affected-bad-medias>
<affected-good-medias> [0..1]
Start Sequence [1..100]
<affected-good-media> FCFareMediaPair </affected-good-media> [1]
End Sequence
</affected-good-medias>
<affected-stoppoints> [0..1]
Start Sequence [1..100]
<affected-stoppoint> CPTStoppointIden </affected-stoppoint> [1]
End Sequence
</affected-stoppoints>
<affected-day-definitions> [0..1]
Start Sequence [1..5]
<affected-day-definition> FCDayDefinition </affected-day-definition> [1]
End Sequence
</affected-day-definitions>
<affected-transfers> [0..1]
Start Sequence [1..100]
<affected-transfer> FCAllowedTransferRecord </affected-transfer> [1]
End Sequence
</affected-transfers>
<affected-permisions> [0..1]
Start Sequence [1..100]
<affected-permision> CPTOperatorIden </affected-permision> [1]
End Sequence
</affected-permisions>
<localFCValidationError> local:FCValidationError </localFCValidationError> [0..1]
</...>

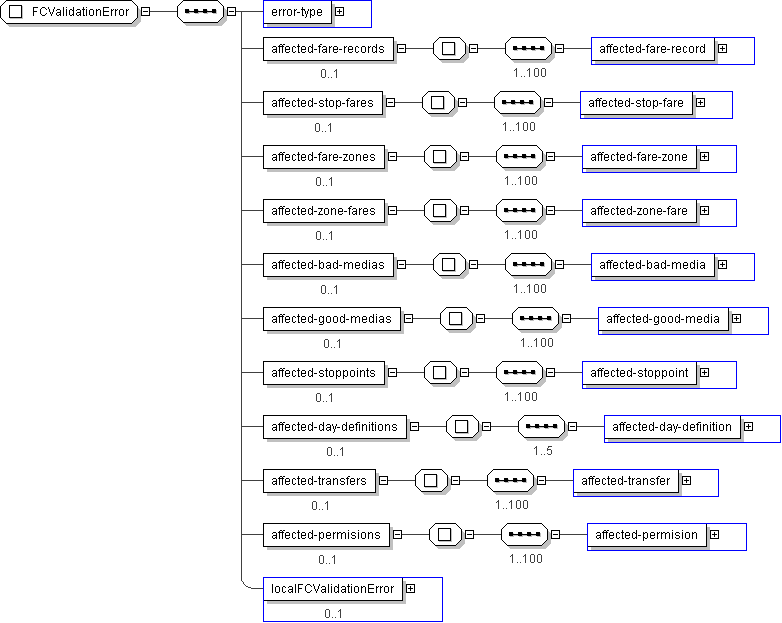

Diagram
h-1989054882 h-267432027 h602530520 h-306856928 h602530520 h702186382 h702186382 h2146772752 h1097987405 h-725348062 h324755946 h748837069
Schema Component Representation
<xs:complexType name="FCValidationError">
<xs:sequence>
<xs:element name="error-type" type=" FC-ValidationErrorType "/>
<xs:element name="affected-fare-records" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="affected-fare-record" type=" FC-FareRecordID "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="affected-stop-fares" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="affected-stop-fare" type=" FC-FareDefinitionRecordID "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="affected-fare-zones" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="affected-fare-zone" type=" FCFareZoneIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="affected-zone-fares" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="affected-zone-fare" type=" FC-FareDefinitionRecordID "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="affected-bad-medias" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="affected-bad-media" type=" FCFareMediaPair "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="affected-good-medias" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="affected-good-media" type=" FCFareMediaPair "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="affected-stoppoints" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="affected-stoppoint" type=" CPTStoppointIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="affected-day-definitions" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="5">
<xs:element name="affected-day-definition" type=" FCDayDefinition "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="affected-transfers" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="affected-transfer" type=" FCAllowedTransferRecord "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="affected-permisions" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="affected-permision" type=" CPTOperatorIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="localFCValidationError" type=" local:FCValidationError " minOccurs="0"/>
</xs:sequence>
</xs:complexType>
