Documentation for ATIS-Draft-03-00-79

Element: schUnassignedVehicleListSub

[Table of contents]

Name schUnassignedVehicleListSub
Type SchUnassignedVehicleListSub
Nillable no
Abstract no

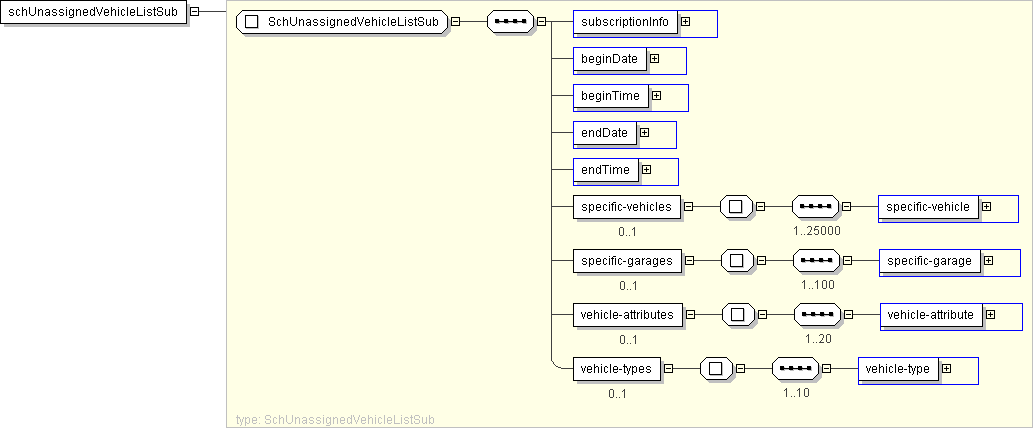

Logical Diagram
h-841091506 h1454893695 h622141300 h2028732603 h-745213291
XML Instance Representation
<schUnassignedVehicleListSub>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<beginDate> CPT-Date </beginDate> [1]
<beginTime> CPT-Time </beginTime> [1]
<endDate> CPT-Date </endDate> [1]
<endTime> CPT-Time </endTime> [1]
<specific-vehicles> [0..1]
Start Sequence [1..25000]
<specific-vehicle> CPTVehicleIden </specific-vehicle> [1]
End Sequence
</specific-vehicles>
<specific-garages> [0..1]
Start Sequence [1..100]
<specific-garage> CPTTransitFacilityIden </specific-garage> [1]
End Sequence
</specific-garages>
<vehicle-attributes> [0..1]
Start Sequence [1..20]
<vehicle-attribute> CPT-PTVehicleAttribute </vehicle-attribute> [1]
End Sequence
</vehicle-attributes>
<vehicle-types> [0..1]
Start Sequence [1..10]
<vehicle-type> CPT-PTVehicleType </vehicle-type> [1]
End Sequence
</vehicle-types>
</schUnassignedVehicleListSub>

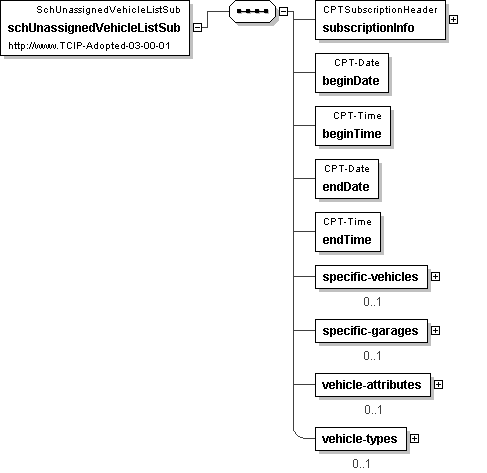

Diagram
h-527207252 h-1969881159 h-1969397032 h-1969881159 h-1969397032 h1471596526 h2133900120 h1217607583 h-1622037417
Schema Component Representation
<xs:element name="schUnassignedVehicleListSub" type=" SchUnassignedVehicleListSub "/>
