Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	PI-ADANeed
Used by (from the same schema document)	Complex Type PITripRequestFareConstraints
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 9 Locally defined type: Base XSD Type: string value comes from list: {'noADANeed'\|'mobilityAssistanceRequired'\|'visualAssistanceRequired'\|'audioAssistanceRequired'\|'otherAssistanceRequired'\|'visual AudioAssistanceRequired'\|'visual MobilityAssistanceRequired'\|'audio MobilityAssistanceRequired'\|'visual Audio MobilityAssistanceRequired'} Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}
Application Data	noADANeed (1) mobilityAssistanceRequired (2) visualAssistanceRequired (3) audioAssistanceRequired (4) otherAssistanceRequired (5) visual AudioAssistanceRequired (6) visual MobilityAssistanceRequired (7) audio MobilityAssistanceRequired (8) visual Audio MobilityAssistanceRequired (9) -- 10-127 reserved -- 128-255 local use

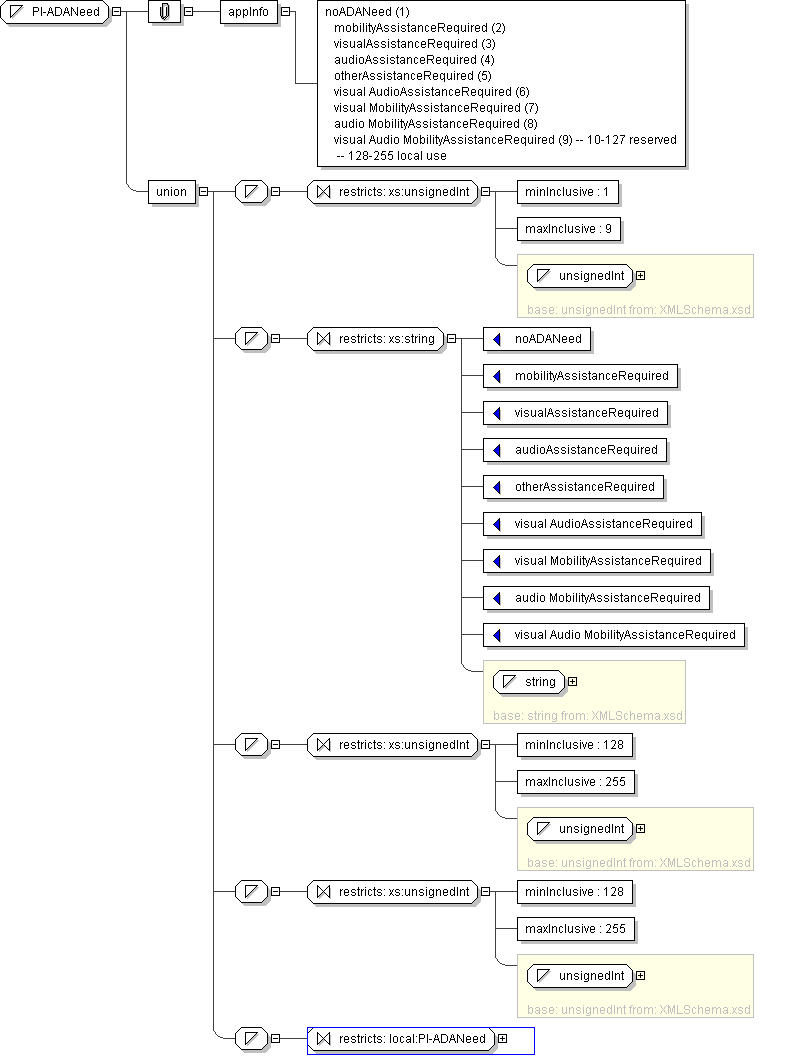

Schema Component Representation

<xs:simpleType name="PI-ADANeed">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="9"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="noADANeed"/>

<xs:enumeration value="mobilityAssistanceRequired"/>

<xs:enumeration value="visualAssistanceRequired"/>

<xs:enumeration value="audioAssistanceRequired"/>

<xs:enumeration value="otherAssistanceRequired"/>

<xs:enumeration value="visual AudioAssistanceRequired"/>

<xs:enumeration value="visual MobilityAssistanceRequired"/>

<xs:enumeration value="audio MobilityAssistanceRequired"/>

<xs:enumeration value="visual Audio MobilityAssistanceRequired"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:PI-ADANeed "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
