Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

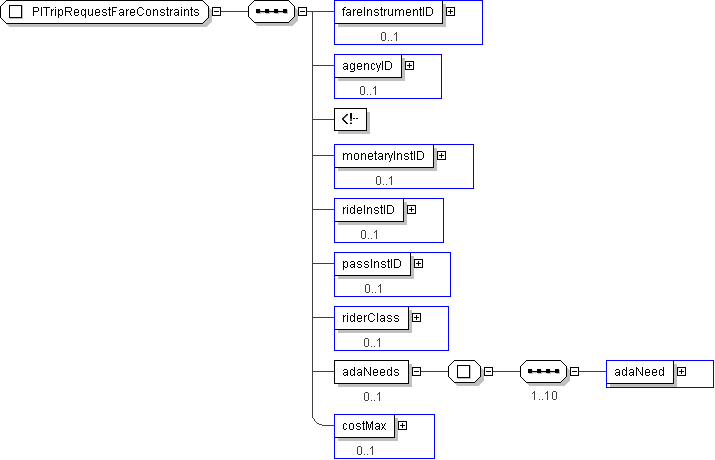

Name	PITripRequestFareConstraints
Used by (from the same schema document)	Complex Type PITripRequest
Abstract	no

XML Instance Representation

<...>

<fareInstrumentID> FC-FareInstrID </fareInstrumentID> [0..1]

<agencyID> CPT-AgencyID </agencyID> [0..1]

<monetaryInstID> FC-MonetaryInstrType </monetaryInstID> [0..1]

<rideInstID> FC-RideInstrID </rideInstID> [0..1]

<passInstID> FC-PassInstrID </passInstID> [0..1]

<riderClass> atis:TravelerClass </riderClass> [0..1]

<adaNeeds> [0..1]
Start Sequence [1..10]

<adaNeed> PI-ADANeed </adaNeed> [1]

End Sequence
</adaNeeds>

<costMax> PI-MaxCost </costMax> [0..1]

</...>

Schema Component Representation

<xs:complexType name="PITripRequestFareConstraints">

<xs:sequence>

<xs:element name="fareInstrumentID" type=" FC-FareInstrID " minOccurs="0"/>

<xs:element name="agencyID" type=" CPT-AgencyID " minOccurs="0"/>

<-- owner of fare media -->

<xs:element name="monetaryInstID" type=" FC-MonetaryInstrType " minOccurs="0"/>

<xs:element name="rideInstID" type=" FC-RideInstrID " minOccurs="0"/>

<xs:element name="passInstID" type=" FC-PassInstrID " minOccurs="0"/>

<xs:element name="riderClass" type=" atis:TravelerClass " minOccurs="0"/>

<xs:element name="adaNeeds" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="adaNeed" type=" PI-ADANeed "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="costMax" type=" PI-MaxCost " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
