Documentation for ATIS-Draft-03-00-79

Element: tspPRGInputsCC

[Table of contents]

Name tspPRGInputsCC
Type TspPRGInputsCC
Nillable no
Abstract no

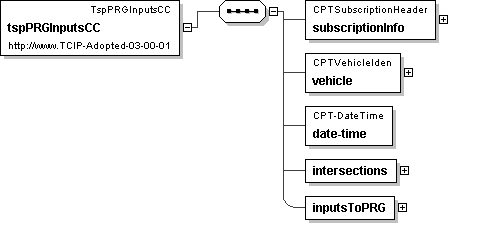

Logical Diagram
h-841091506 h-1556768535 h151531271 h-2119799554
XML Instance Representation
<tspPRGInputsCC>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<vehicle> CPTVehicleIden </vehicle> [1]
<date-time> CPT-DateTime </date-time> [1]
<intersections> [1]
Start Sequence [1..100000]
<intersection> CPTIntersectionIden </intersection> [1]
End Sequence
</intersections>
<inputsToPRG> [1]
Start Sequence [1..500]
<inputsToPRG-item> TSPPRGInputsCCEntry </inputsToPRG-item> [1]
End Sequence
</inputsToPRG>
</tspPRGInputsCC>

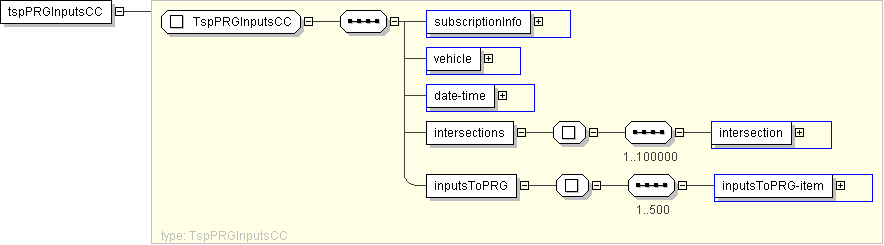

Diagram
h-527207252 h1471596526 h1272267302 h-1285224369 h-1547052400
Schema Component Representation
<xs:element name="tspPRGInputsCC" type=" TspPRGInputsCC "/>
