Documentation for ATIS-Draft-03-00-79

Element: ccVehicleShutdownReport

[Table of contents]

Name ccVehicleShutdownReport
Type CcVehicleShutdownReport
Nillable no
Abstract no

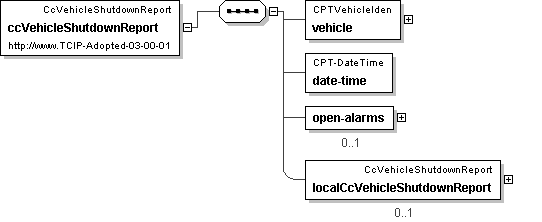

Logical Diagram
h-1556768535 h-399036318 h1349581678
XML Instance Representation
<ccVehicleShutdownReport>
<vehicle> CPTVehicleIden </vehicle> [1]
<date-time> CPT-DateTime </date-time> [1]
<open-alarms> [0..1]
Start Sequence [1..100]
<open-alarm> OBParameterDumpEntry </open-alarm> [1]
End Sequence
</open-alarms>
<localCcVehicleShutdownReport> local:CcVehicleShutdownReport </localCcVehicleShutdownReport> [0..1]
</ccVehicleShutdownReport>

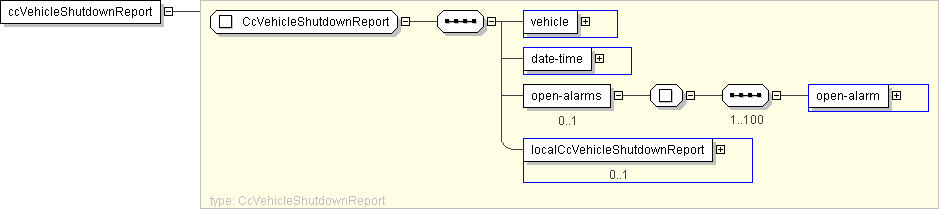

Diagram
h1471596526 h1272267302 h-1550992307 h606186193
Schema Component Representation
<xs:element name="ccVehicleShutdownReport" type=" CcVehicleShutdownReport "/>
