Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

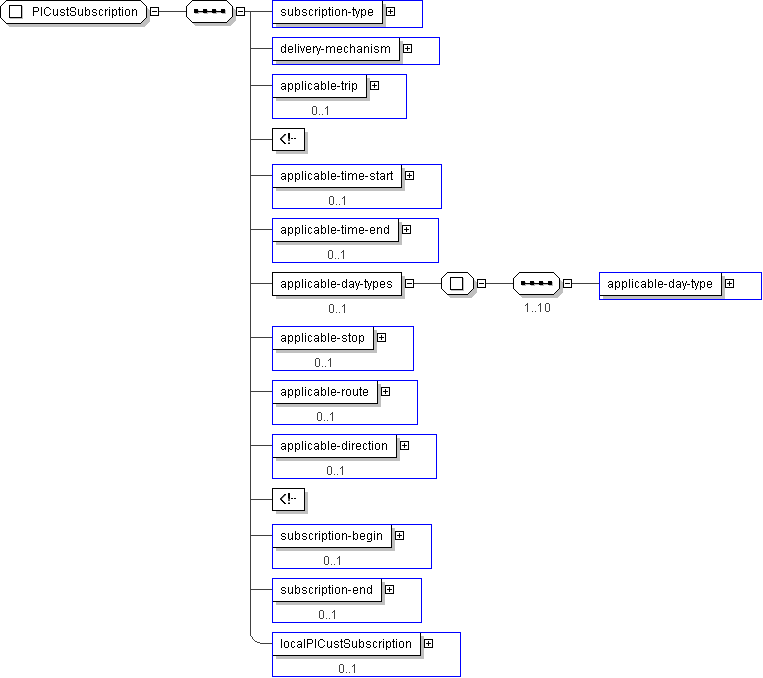

Name	PICustSubscription
Used by (from the same schema document)	Complex Type PiAckSubscriptionUpdate , Complex Type PiReportSubscriptionUpdate , Complex Type PiReportSubscriptionUpdate , Complex Type PiReportSubscriptionUpdate , Complex Type PICustomerProfile
Abstract	no

XML Instance Representation

<...>

<subscription-type> PI-CustomerSubscriptionType </subscription-type> [1]

<delivery-mechanism> PI-DeliveryMechanism </delivery-mechanism> [1]

<applicable-trip> CPT-Footnote </applicable-trip> [0..1]

<applicable-time-start> CPT-DateTime </applicable-time-start> [0..1]

<applicable-time-end> CPT-Time </applicable-time-end> [0..1]

<applicable-day-types> [0..1]
Start Sequence [1..10]

<applicable-day-type> SCH-DayType </applicable-day-type> [1]

End Sequence
</applicable-day-types>

<applicable-stop> CPTStoppointIden </applicable-stop> [0..1]

<applicable-route> SCHRouteIden </applicable-route> [0..1]

<applicable-direction> lrms:Direction </applicable-direction> [0..1]

<subscription-begin> CPT-DateTime </subscription-begin> [0..1]

<subscription-end> CPT-DateTime </subscription-end> [0..1]

<localPICustSubscription> local:PICustSubscription </localPICustSubscription> [0..1]

</...>

Schema Component Representation

<xs:complexType name="PICustSubscription">

<xs:sequence>

<xs:element name="subscription-type" type=" PI-CustomerSubscriptionType "/>

<xs:element name="delivery-mechanism" type=" PI-DeliveryMechanism "/>

<xs:element name="applicable-trip" type=" CPT-Footnote " minOccurs="0"/>

<-- matches customer assigned name -->

<xs:element name="applicable-time-start" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="applicable-time-end" type=" CPT-Time " minOccurs="0"/>

<xs:element name="applicable-day-types" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="applicable-day-type" type=" SCH-DayType "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="applicable-stop" type=" CPTStoppointIden " minOccurs="0"/>

<xs:element name="applicable-route" type=" SCHRouteIden " minOccurs="0"/>

<xs:element name="applicable-direction" type=" lrms:Direction " minOccurs="0"/>

<-- use with stop or route -->

<xs:element name="subscription-begin" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="subscription-end" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="localPICustSubscription" type=" local:PICustSubscription " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
