Documentation for ATIS-Draft-03-00-79

Complex Type: PiReportSubscriptionUpdate

[Table of contents]

Super-types: None
Sub-types: None
Name PiReportSubscriptionUpdate
Used by (from the same schema document) Element piReportSubscriptionUpdate
Abstract no
XML Instance Representation
<...>
<time-submitted> CPT-DateTime </time-submitted> [1]
<customer> PITravelerIden </customer> [0..1]
<password> CPT-Footnote </password> [0..1]
<username> CPT-Footnote </username> [0..1]
<deleted-subscriptions> [0..1]
Start Sequence [1..20]
<deleted-subscription> PICustSubscription </deleted-subscription> [1]
End Sequence
</deleted-subscriptions>
<added-subscriptions> [0..1]
Start Sequence [1..20]
<added-subscription> PICustSubscription </added-subscription> [1]
End Sequence
</added-subscriptions>
<modified-subscriptions> [0..1]
Start Sequence [1..20]
<modified-subscription> PICustSubscription </modified-subscription> [1]
End Sequence
</modified-subscriptions>
</...>

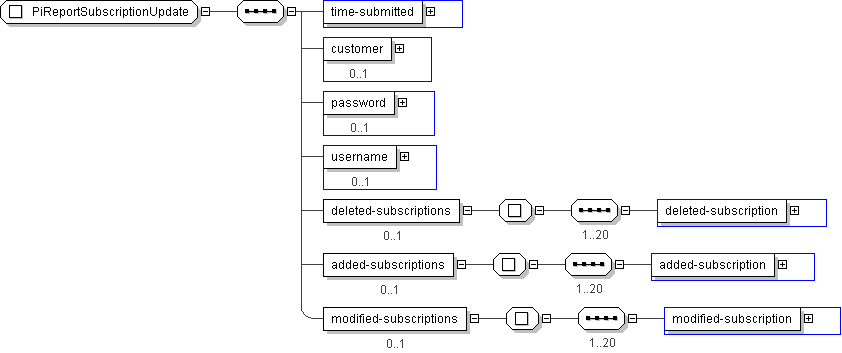

Diagram
h1272267302 h257513769 h-125442069 h-125442069 h-1672760242 h-1672760242 h-1672760242
Schema Component Representation
<xs:complexType name="PiReportSubscriptionUpdate">
<xs:sequence>
<xs:element name="time-submitted" type=" CPT-DateTime "/>
<xs:element name="customer" type=" PITravelerIden " minOccurs="0"/>
<xs:element name="password" type=" CPT-Footnote " minOccurs="0"/>
<xs:element name="username" type=" CPT-Footnote " minOccurs="0"/>
<xs:element name="deleted-subscriptions" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="20">
<xs:element name="deleted-subscription" type=" PICustSubscription "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="added-subscriptions" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="20">
<xs:element name="added-subscription" type=" PICustSubscription "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="modified-subscriptions" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="20">
<xs:element name="modified-subscription" type=" PICustSubscription "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
