Documentation for ATIS-Draft-03-00-79

Element: schPullOutList

[Table of contents]

Name schPullOutList
Type SchPullOutList
Nillable no
Abstract no

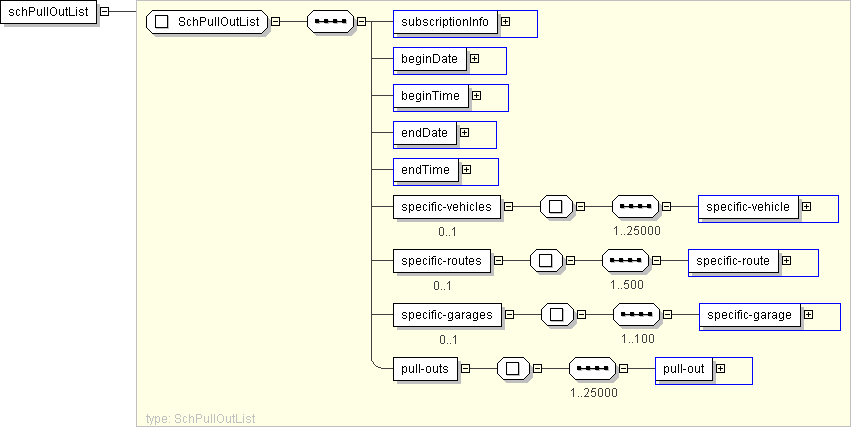

Logical Diagram
h-841091506 h1454893695 h902215938 h622141300 h-2039783446
XML Instance Representation
<schPullOutList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<beginDate> CPT-Date </beginDate> [1]
<beginTime> CPT-Time </beginTime> [1]
<endDate> CPT-Date </endDate> [1]
<endTime> CPT-Time </endTime> [1]
<specific-vehicles> [0..1]
Start Sequence [1..25000]
<specific-vehicle> CPTVehicleIden </specific-vehicle> [1]
End Sequence
</specific-vehicles>
<specific-routes> [0..1]
Start Sequence [1..500]
<specific-route> SCHRouteIden </specific-route> [1]
End Sequence
</specific-routes>
<specific-garages> [0..1]
Start Sequence [1..100]
<specific-garage> CPTTransitFacilityIden </specific-garage> [1]
End Sequence
</specific-garages>
<pull-outs> [1]
Start Sequence [1..25000]
<pull-out> SCHPullInOutInfo </pull-out> [1]
End Sequence
</pull-outs>
</schPullOutList>

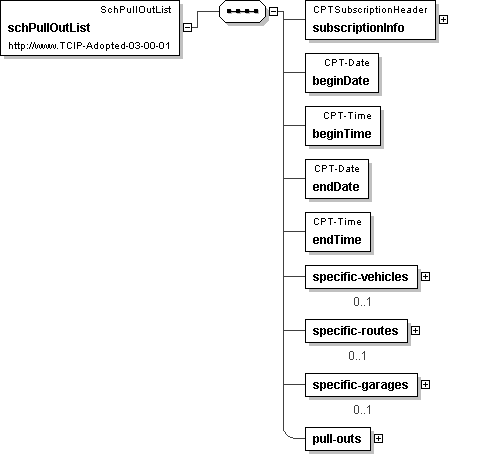

Diagram
h-527207252 h-1969881159 h-1969397032 h-1969881159 h-1969397032 h1471596526 h-963684166 h2133900120 h-853550913
Schema Component Representation
<xs:element name="schPullOutList" type=" SchPullOutList "/>
