Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	VehicleRestrictions
Used by (from the same schema document)	Complex Type ParkingSpaceRequest , Complex Type ParkingRequestDetails , Complex Type TripConstraints
Abstract	no

XML Instance Representation

<...>

<basicType> itis:VehicleGroupAffected </basicType> [1]

<axleCount> tmdd:Link-restriction-axle-count </axleCount> [0..1]

<axleWeight> tmdd:Link-restriction-weight-axle </axleWeight> [0..1]

<vehicleWeight> tmdd:Link-restriction-weight-vehicle </vehicleWeight> [0..1]

<vehicleHeight> tmdd:Link-restriction-height </vehicleHeight> [0..1]

<vehicleLength> tmdd:Link-restriction-length </vehicleLength> [0..1]

<vehicleWidth> tmdd:Link-restriction-width </vehicleWidth> [0..1]

<vehicleClass> itis:RestrictionClass </vehicleClass> [0..1]

<hasHAZMAT> xs:boolean </hasHAZMAT> [0..1]

<hasWaste> xs:boolean </hasWaste> [0..1]

<convoy> xs:boolean </convoy> [0..1]

<slowVehicle> xs:boolean </slowVehicle> [0..1]

</...>

Schema Component Representation

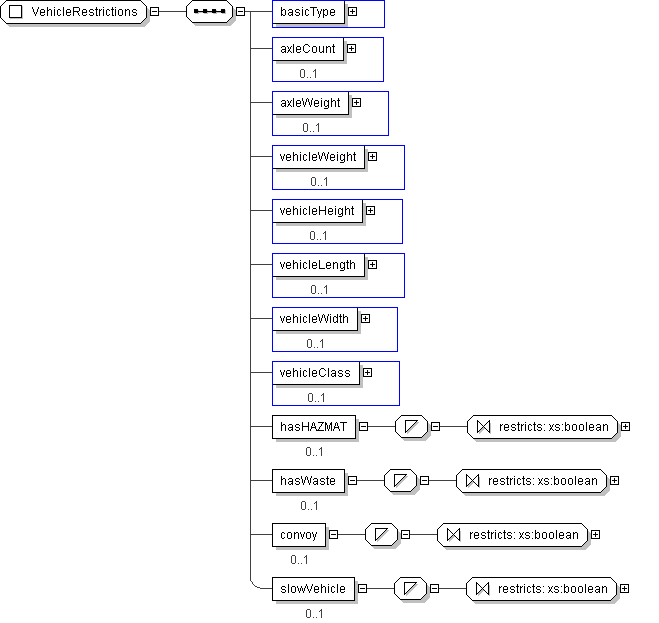

<xs:complexType name="VehicleRestrictions">

<xs:sequence>

<xs:element name="basicType" type=" itis:VehicleGroupAffected "/>

<xs:element name="axleCount" type=" tmdd:Link-restriction-axle-count " minOccurs="0"/>

<xs:element name="axleWeight" type=" tmdd:Link-restriction-weight-axle " minOccurs="0"/>

<xs:element name="vehicleWeight" type=" tmdd:Link-restriction-weight-vehicle " minOccurs="0"/>

<xs:element name="vehicleHeight" type=" tmdd:Link-restriction-height " minOccurs="0"/>

<xs:element name="vehicleLength" type=" tmdd:Link-restriction-length " minOccurs="0"/>

<xs:element name="vehicleWidth" type=" tmdd:Link-restriction-width " minOccurs="0"/>

<xs:element name="vehicleClass" type=" itis:RestrictionClass " minOccurs="0"/>

<xs:element name="hasHAZMAT" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<xs:element name="hasWaste" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<xs:element name="convoy" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<xs:element name="slowVehicle" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
