Documentation for ATIS-Draft-03-00-79

Simple Type: Link-restriction-weight-vehicle

[Table of contents]

Super-types:	xs:unsignedInt < Link-restriction-weight-vehicle (by restriction)
Sub-types:	None

Name	Link-restriction-weight-vehicle
Content	Base XSD Type: unsignedInt value <= 80000
Documentation	<Definition> Maximum Vehicle Weight allowable on a Link in kilograms</Definition> <Remarks> 80,000 KG = 176,128 lbs. V1.1 - Changed the descriptive name from LINK_WeightRestriction_quantity to LINK_RestrictionWeight_quantity. V1.3 - Increased the maximum weight from 50,000 kg to 80,000 kg. V1.5 - Changed Descriptive Name from LINK_RestrictionWeight_quantity. V1.7 - Added FADD_ID attribute; revised Class Name, Classification Scheme Name/Version, Data Concept Identifier/Version to reflect harmonization with ITS Data Registry.</Remarks> kilograms

Name

Link-restriction-weight-vehicle

Content

Base XSD Type: unsignedInt

value <= 80000

Documentation

<Definition> Maximum Vehicle Weight allowable on a Link in kilograms</Definition> <Remarks> 80,000 KG = 176,128 lbs. V1.1 - Changed the descriptive name from LINK_WeightRestriction_quantity to LINK_RestrictionWeight_quantity. V1.3 - Increased the maximum weight from 50,000 kg to 80,000 kg. V1.5 - Changed Descriptive Name from LINK_RestrictionWeight_quantity. V1.7 - Added FADD_ID attribute; revised Class Name, Classification Scheme Name/Version, Data Concept Identifier/Version to reflect harmonization with ITS Data Registry.</Remarks> kilograms

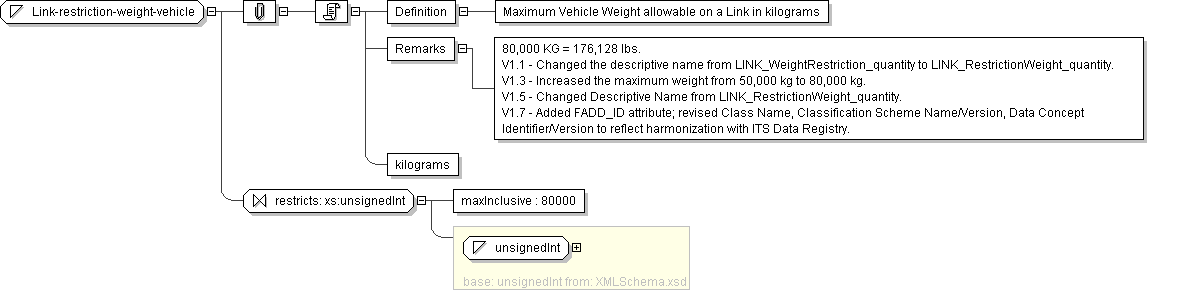

Diagram

Schema Component Representation

<xs:simpleType name="Link-restriction-weight-vehicle">

<xs:restriction base=" xs:unsignedInt ">

<xs:maxInclusive value="80000"/>

</xs:restriction>

</xs:simpleType>
