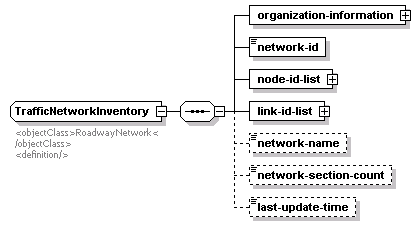

complexType TrafficNetworkInventory

diagram
namespace	http://www.ite.org/tmdd
children	organization-information network-id node-id-list link-id-list network-name network-section-count last-update-time
used by	element  trafficNetworkInventory
annotation	documentation <objectClass>RoadwayNetwork</objectClass> <definition/>
source	<xs:complexType name="TrafficNetworkInventory">   <xs:annotation>     <xs:documentation>       <objectClass>RoadwayNetwork</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="organization-information" type="OrganizationInformation"/>     <xs:element name="network-id" type="Roadway-network-identifier"/>     <xs:element name="node-id-list">       <xs:complexType>         <xs:sequence maxOccurs="255">           <xs:element name="node-id" type="Roadway-network-identifier"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="link-id-list">       <xs:complexType>         <xs:sequence maxOccurs="255">           <xs:element name="link-id" type="Roadway-network-identifier"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="network-name" type="Roadway-network-name" minOccurs="0"/>     <xs:element name="network-section-count" type="Network-section-count" minOccurs="0"/>     <xs:element name="last-update-time" type="DateTimeZone" minOccurs="0"/>   </xs:sequence> </xs:complexType>

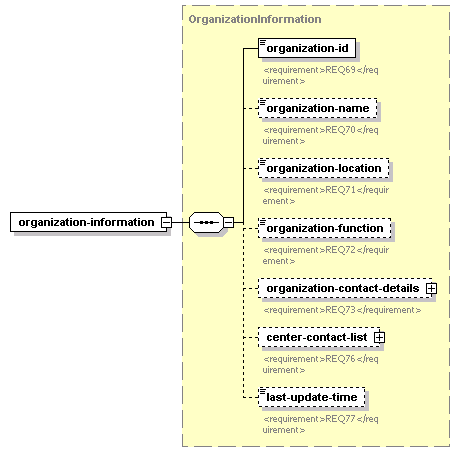

element TrafficNetworkInventory/organization-information

diagram
type	OrganizationInformation
properties	isRef  0 content  complex
children	organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
source	<xs:element name="organization-information" type="OrganizationInformation"/>

element TrafficNetworkInventory/network-id

diagram
type	Roadway-network-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="network-id" type="Roadway-network-identifier"/>

element TrafficNetworkInventory/node-id-list

diagram
properties	isRef  0 content  complex
children	node-id
source	<xs:element name="node-id-list">   <xs:complexType>     <xs:sequence maxOccurs="255">       <xs:element name="node-id" type="Roadway-network-identifier"/>     </xs:sequence>   </xs:complexType> </xs:element>

element TrafficNetworkInventory/node-id-list/node-id

diagram
type	Roadway-network-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="node-id" type="Roadway-network-identifier"/>

element TrafficNetworkInventory/link-id-list

diagram
properties	isRef  0 content  complex
children	link-id
source	<xs:element name="link-id-list">   <xs:complexType>     <xs:sequence maxOccurs="255">       <xs:element name="link-id" type="Roadway-network-identifier"/>     </xs:sequence>   </xs:complexType> </xs:element>

element TrafficNetworkInventory/link-id-list/link-id

diagram
type	Roadway-network-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="link-id" type="Roadway-network-identifier"/>

element TrafficNetworkInventory/network-name

diagram
type	Roadway-network-name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="network-name" type="Roadway-network-name" minOccurs="0"/>

element TrafficNetworkInventory/network-section-count

diagram
type	Network-section-count
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  1
source	<xs:element name="network-section-count" type="Network-section-count" minOccurs="0"/>

element TrafficNetworkInventory/last-update-time

diagram
type	DateTimeZone
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="last-update-time" type="DateTimeZone" minOccurs="0"/>
