complexType SectionTimingPlanRequest

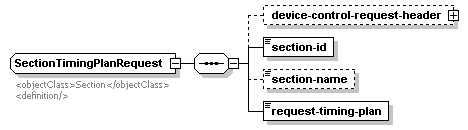

diagram
namespace	http://www.ite.org/tmdd
children	device-control-request-header section-id section-name request-timing-plan
annotation	documentation <objectClass>Section</objectClass> <definition/>
source	<xs:complexType name="SectionTimingPlanRequest">   <xs:annotation>     <xs:documentation>       <objectClass>Section</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="device-control-request-header" type="DeviceControlRequestHeader" minOccurs="0"/>     <xs:element name="section-id" type="Organization-resource-identifier"/>     <xs:element name="section-name" type="Organization-resource-name" minOccurs="0"/>     <xs:element name="request-timing-plan" type="Organization-resource-identifier"/>   </xs:sequence> </xs:complexType>

element SectionTimingPlanRequest/device-control-request-header

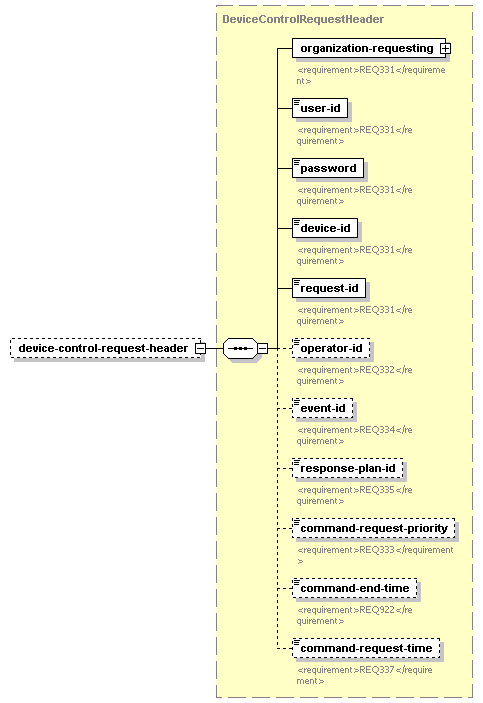

diagram
type	DeviceControlRequestHeader
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	organization-requesting user-id password device-id request-id operator-id event-id response-plan-id command-request-priority command-end-time command-request-time
source	<xs:element name="device-control-request-header" type="DeviceControlRequestHeader" minOccurs="0"/>

element SectionTimingPlanRequest/section-id

diagram
type	Organization-resource-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="section-id" type="Organization-resource-identifier"/>

element SectionTimingPlanRequest/section-name

diagram
type	Organization-resource-name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="section-name" type="Organization-resource-name" minOccurs="0"/>

element SectionTimingPlanRequest/request-timing-plan

diagram
type	Organization-resource-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="request-timing-plan" type="Organization-resource-identifier"/>
